Tahoe / Yukon Service Manual

Fuel Pump Power Control Module Replacement

Engine Controls and Fuel - 5.3L L84 or 6.2L L87 | Repair Instructions | Document ID: 5539339 Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

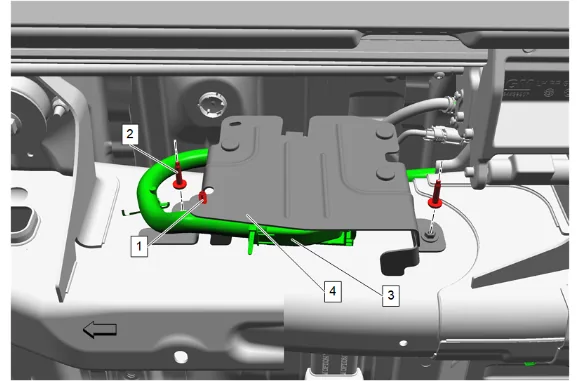

Fuel Pump Power Control Module Replacement — figure 1
Fuel Pump Power Control Module Replacement — figure 1
  1. Disengage the wiring harness retainer (1).
  2. Fuel Pump Power Control Module Bracket Bolt (2) » Remove [2x]
  3. Disconnect the fuel pump power control module electrical connector (3).
  4. Fuel Pump Power Control Module Bracket (4) » Remove
Fuel Pump Power Control Module Replacement — figure 2
Fuel Pump Power Control Module Replacement — figure 2

  1. Fuel Pump Power Control Module Nut (1) » Remove [2x]

  2. Fuel Pump Power Control Module (2) @ Fuel Pump Power Control Module Bracket (3) » Remove Installation Procedure

  3. Fuel Pump Power Control Module (2) @ Fuel Pump Power Control Module Bracket (3) » Install

  1. Fuel Pump Power Control Module Nut (1) » Install and tighten [2x] — Fastener Specifications

  2. Fuel Pump Power Control Module Bracket (4) » Install

  3. Connect the fuel pump power control module electrical connector (3).

  4. Fuel Pump Power Control Module Bracket Bolt (2) » Install and tighten [2x] — Fastener Specifications

  5. Engage the wiring harness retainer (1).

  6. Lower the vehicle.

  7. If replacing, perform the fuel pump power control module configuration. K111 Fuel Pump Power Control Module Configuration
