Engine Mount Bracket Replacement - Left Side (4WD)

Single Use Fasteners and Components Engine Mount Engine Side Bolt [2x] Engine Mount Frame Side Bolt [3x] Engine Oil Cooler Gasket - Large Engine Oil Cooler Gasket - Small Transmission Fluid Cooler Seal Transmission Fluid Cooler Pipe Seal [2x] Turbocharger Coolant Feed and Return Pipe Gasket Special Tools EN-36857 Engine Lift Bracket EN-51768 Engine Support Fixture Adaptor Bolt - M8 Equivalent regional tools: Special Tools

Caution

Broken engine mountings can cause misalignment of certain drive-train components. Misalignment of drive-train components causes eventual destruction of the drive-train components. If one engine mount breaks, the rest of the engine mounts will have increased stress put on them. This could cause the rest of the engine mounts to break. Removal Procedure

1. Oil Filler Cap » Remove

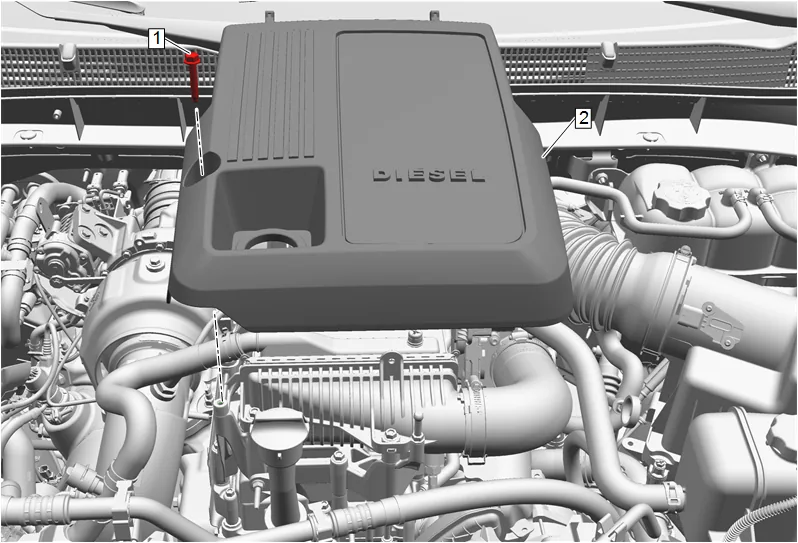

Engine Mount Bracket Replacement - Left Side (4WD) — figure 1

2. Intake Manifold Cover Bolt (1) » Remove
3. Intake Manifold Cover (2) » Remove
4. Install the oil filler cap after removal of the intake manifold cover to prevent debris from falling into the engine.

Engine Mount Bracket Replacement - Left Side (4WD) — figure 2

Note

Some components not shown for graphic clarity.

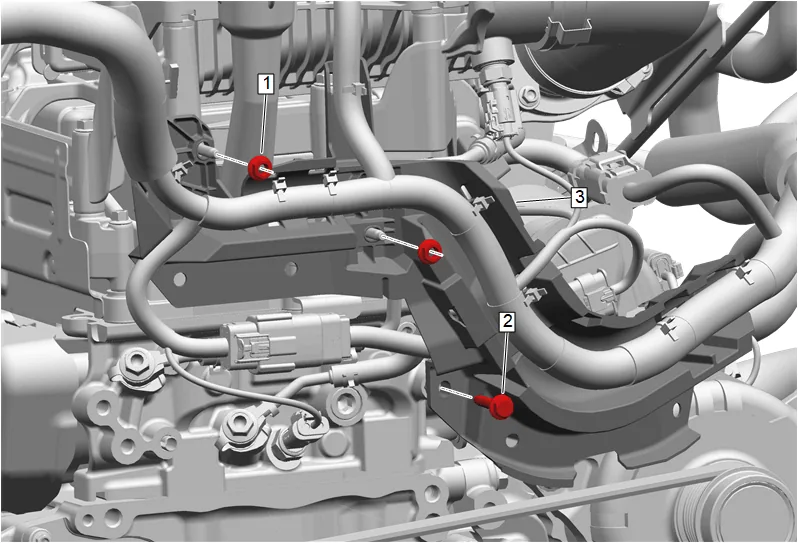

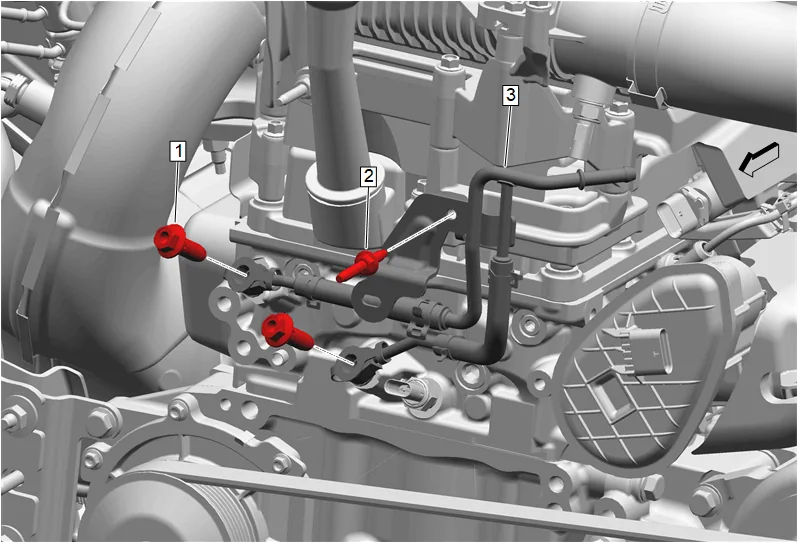

5. Engine Wiring Harness Bracket Nut (1) » Remove [2x]
6. Engine Wiring Harness Bracket Bolt (2) » Remove
7. Reposition the engine wiring harness channel (3) away from the front of the engine.

Engine Mount Bracket Replacement - Left Side (4WD) — figure 3

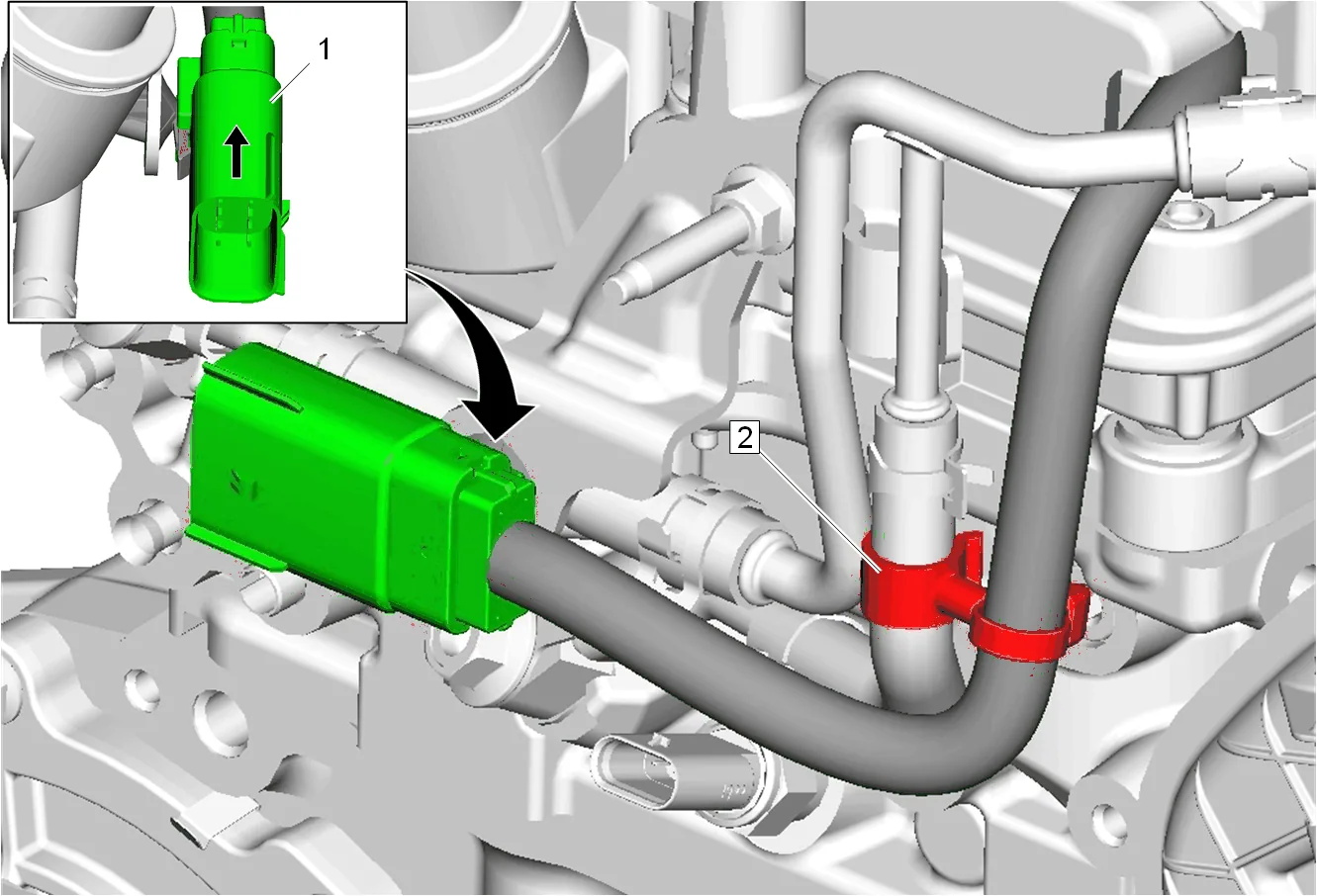

8. Remove the fuel injector wiring harness connector (1) from the engine coolant air bleed bracket.
9. Drain the cooling system. Cooling System Draining and Filling
10. Drain the engine oil. Engine Oil and Oil Filter Replacement

Engine Mount Bracket Replacement - Left Side (4WD) — figure 4

11. Remove the right upper coolant air bleed hose bolt (1) and position the upper air bleed hose aside.

Engine Mount Bracket Replacement - Left Side (4WD) — figure 5

Note

It is not necessary to remove both gaskets.

12. Turbocharger Coolant Feed and Return Pipe Gasket - Right Side Upper (1) » Remove and DISCARD

Engine Mount Bracket Replacement - Left Side (4WD) — figure 6

13. { If equipped } Engine Wiring Harness Ground Bolt (1) » Remove
14. { If equipped } Ground Cable (2) » Remove

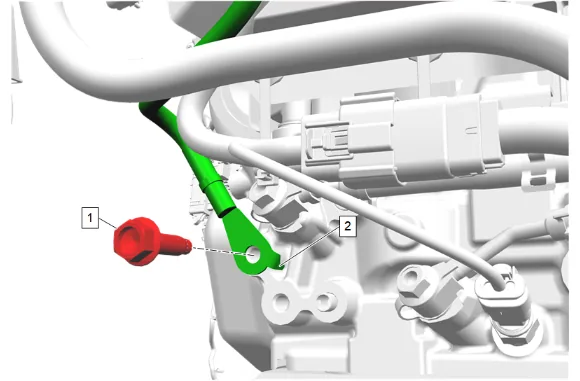

Engine Mount Bracket Replacement - Left Side (4WD) — figure 7

Note

Air bleed hose assembly removed for clarity.

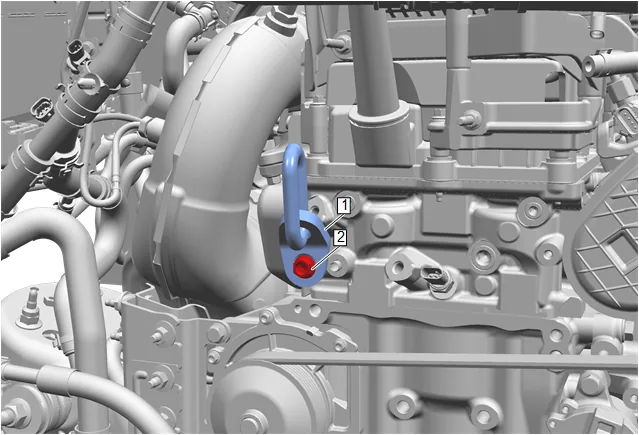

15. Install the EN-36857 Engine Lift Bracket (1) to the front left side of the cylinder head using EN-51768 Engine Support Fixture Adaptor Bolt - M8 (2).
16. Front Wheelhouse Liner - Left Side » Remove — Front Wheelhouse Liner Replacement

Engine Mount Bracket Replacement - Left Side (4WD) — figure 8

17. Automatic Transmission Fluid Cooling Heat Exchanger Outlet Hose Clamp (1) » Disengage [2x] — Hose Clamp Replacement Guidelines - Spring Type
18. Automatic Transmission Fluid Cooling Heat Exchanger Outlet Hose (2) » Remove

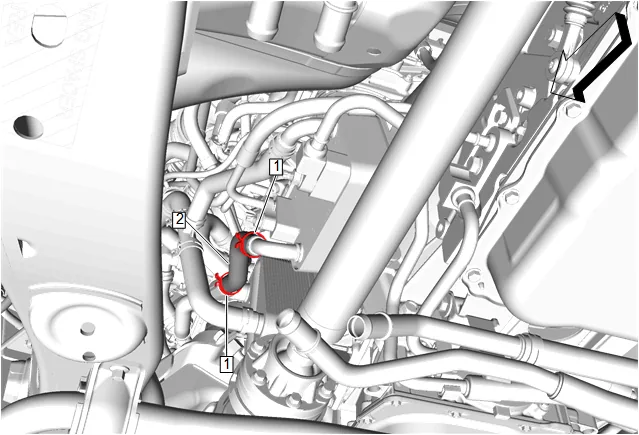

Engine Mount Bracket Replacement - Left Side (4WD) — figure 9

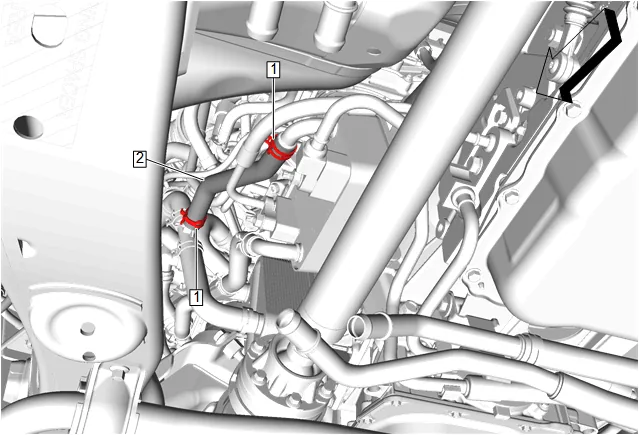

19. Automatic Transmission Fluid Cooling Heat Exchanger Inlet Hose Clamp (1) » Disengage [2x] — Hose Clamp Replacement Guidelines - Spring Type
20. Automatic Transmission Fluid Cooling Heat Exchanger Inlet Hose (2) » Remove

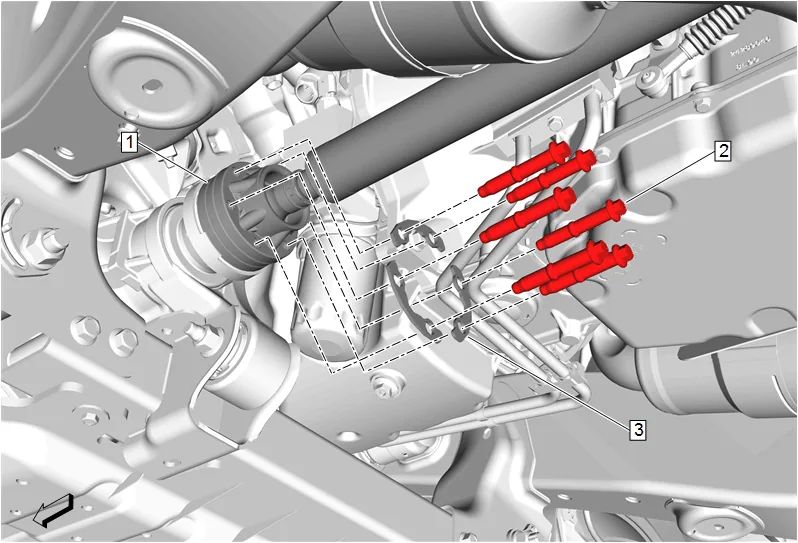

Engine Mount Bracket Replacement - Left Side (4WD) — figure 10

21. Mark a reference point between the front axle propeller shaft (1) and the front differential drive pinion gear yoke.
22. Front Axle Propeller Shaft Bolt (2) » Remove [6x]
23. Front Axle Propeller Shaft Washer (3) » Remove [3x]

Engine Mount Bracket Replacement - Left Side (4WD) — figure 11

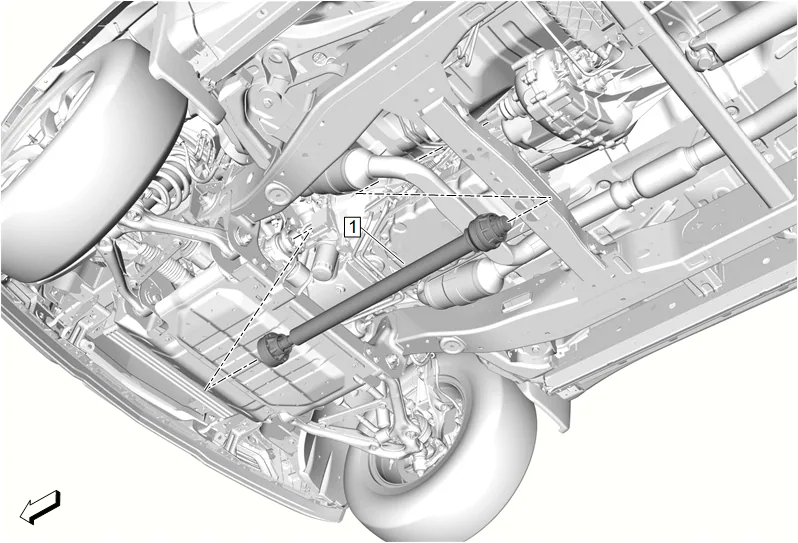

24. Front Axle Propeller Shaft (1) » Reposition away

Engine Mount Bracket Replacement - Left Side (4WD) — figure 12

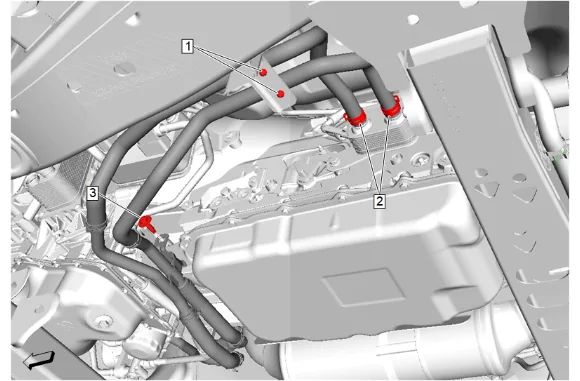

25. Fuel Heater Inlet and Outlet Bolt (3) » Remove

Engine Mount Bracket Replacement - Left Side (4WD) — figure 13

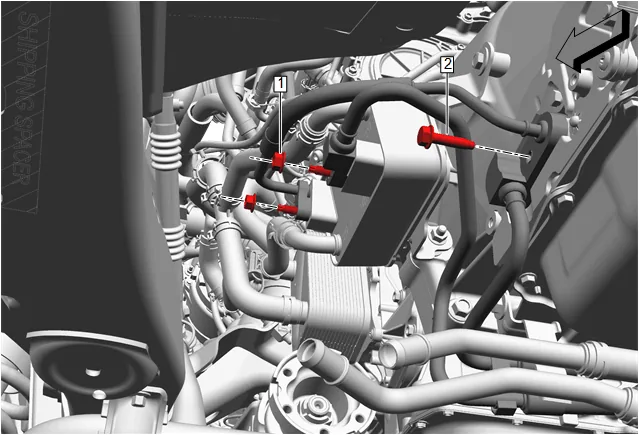

26. Transmission Fluid Cooler Pipe Nut (1) » Remove [2x]
27. Transmission Fluid Cooler Pipe Bolt (2) » Remove

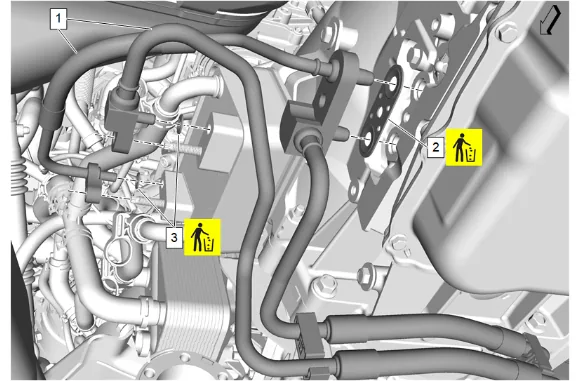

Engine Mount Bracket Replacement - Left Side (4WD) — figure 14

Note

Some components not shown for graphic clarity.

28. Transmission Fluid Cooler Inlet and Outlet Pipe (1) » Remove
29. Transmission Fluid Cooler Seal (2) » Remove and DISCARD
30. Transmission Fluid Cooler Pipe Seal (3) » Remove and DISCARD [2x]
31. Cap the fittings and plug the holes when removing the transmission fluid cooler pipes.

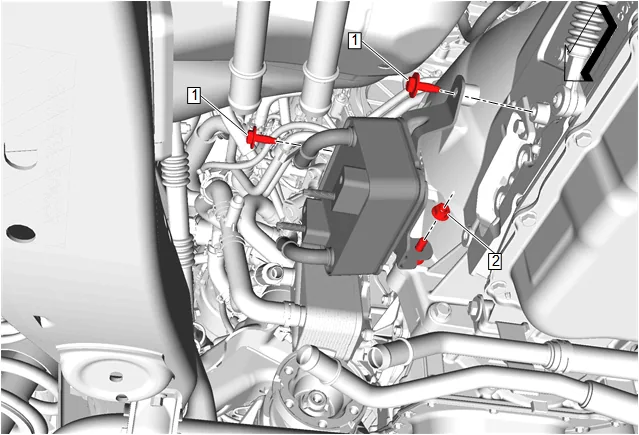

Engine Mount Bracket Replacement - Left Side (4WD) — figure 15

32. Automatic Transmission Fluid Cooling Exchanger Nut (2) » Remove
33. Automatic Transmission Fluid Cooling Exchanger Bolt (1) » Remove [2x]

Engine Mount Bracket Replacement - Left Side (4WD) — figure 16

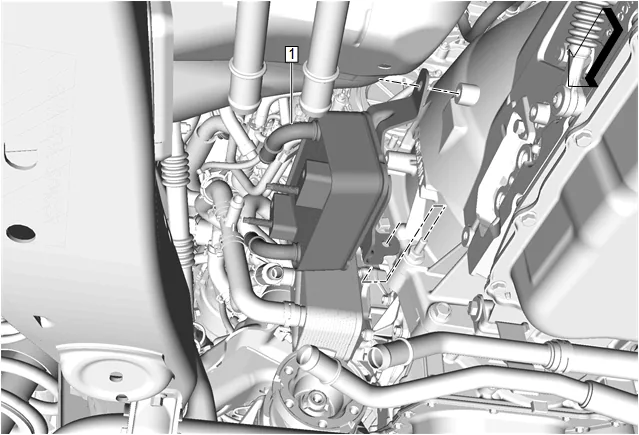

34. Automatic Transmission Fluid Cooling Exchanger (1) » Remove

Engine Mount Bracket Replacement - Left Side (4WD) — figure 17

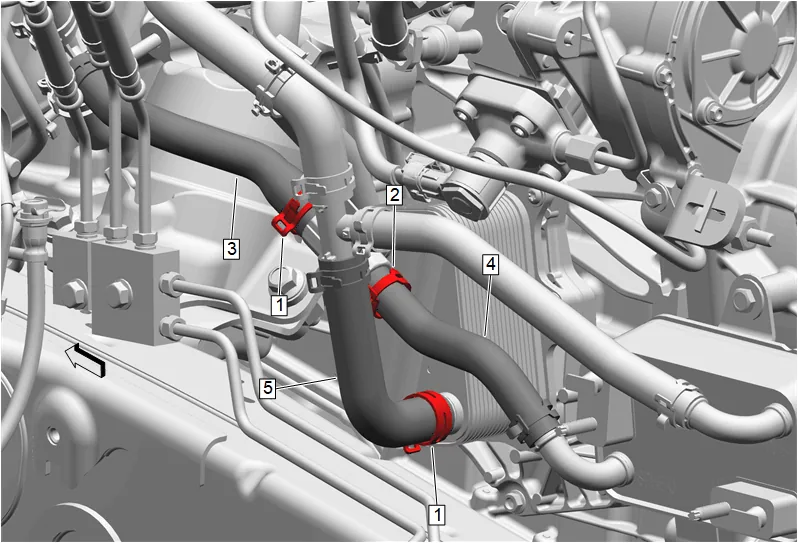

35. Thermostat Bypass Hose Clamp (1) » Disengage [2x] — Hose Clamp Replacement Guidelines

• Spring Type

36. Engine Oil Cooler Coolant Inlet Hose Clamp (2) » Disengage — Hose Clamp Replacement Guidelines - Spring Type
37. Engine Oil Cooler Coolant Outlet Hose (3) @ Engine Oil Cooler » Remove
38. Automatic Transmission Fluid Cooling Heat Exchanger Outlet Hose (4) @ Engine Oil Cooler » Remove
39. Engine Oil Cooler Coolant Inlet Hose (5) @ Engine Oil Cooler » Remove

Engine Mount Bracket Replacement - Left Side (4WD) — figure 18

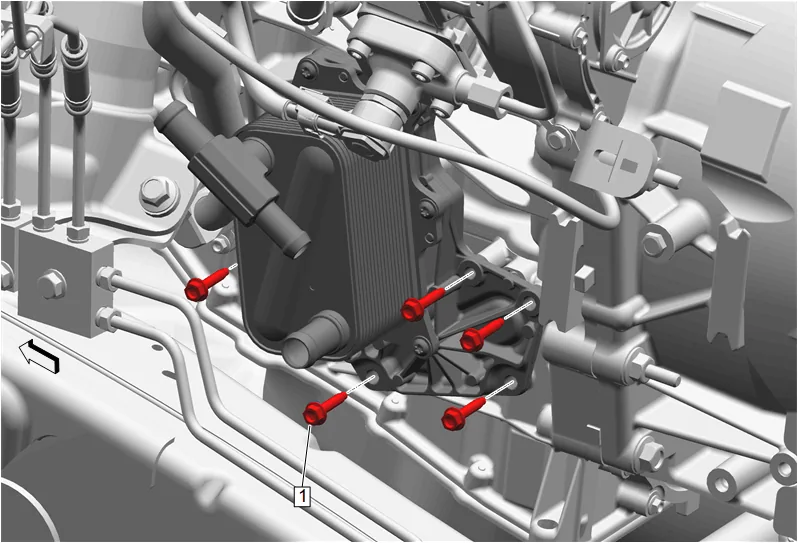

40. Engine Oil Cooler Bolt (1) » Remove [5x]

Engine Mount Bracket Replacement - Left Side (4WD) — figure 19

41. Engine Oil Cooler » (1) Remove
42. Engine Oil Cooler Gasket (2) » Remove and DISCARD
43. Engine Oil Cooler Gasket (3) » Remove and DISCARD
44. Detach engine coolant heater cord retainers and position aside as necessary.

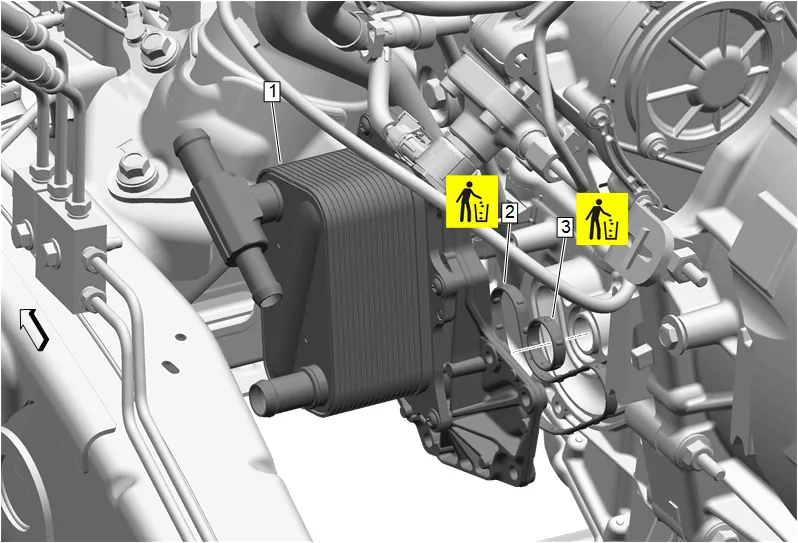

Engine Mount Bracket Replacement - Left Side (4WD) — figure 20

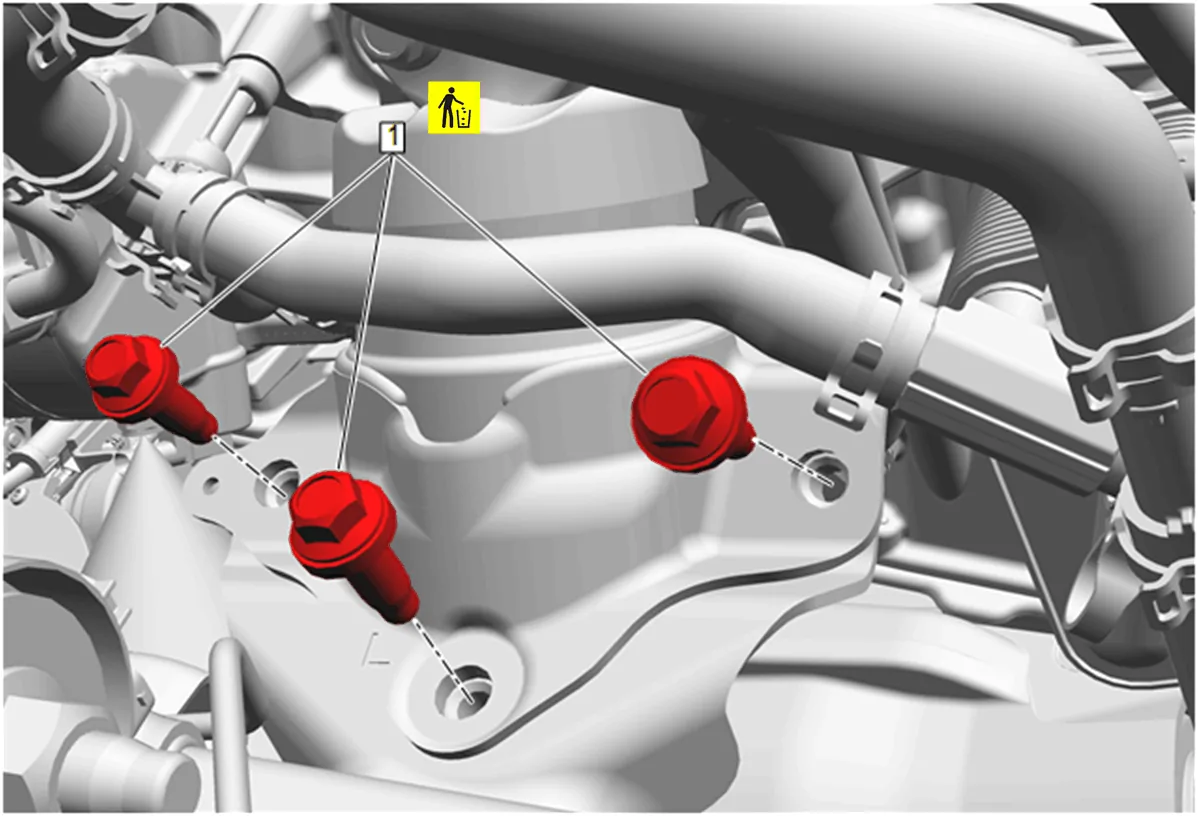

45. Working through the wheelhouse opening remove and DISCARD the 3 engine mount frame side bolts (1).

Caution

When raising or supporting the engine for any reason, do not use a jack under the oil pan, any sheet metal, or the crankshaft pulley. Lifting the engine in an unapproved manner may cause component damage.

Note

When raising the engine only raise enough to separate the engine mount from the engine mount bracket. Raising any further will require removal of the fan shroud or the exhaust pipe.

46. Raise the engine with a suitable lifting device to remove the engine mount.

Engine Mount Bracket Replacement - Left Side (4WD) — figure 21

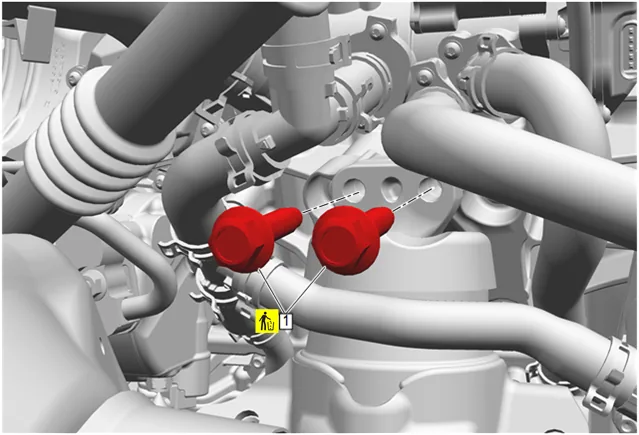

47. Remove and DISCARD the 2 engine mount engine side bolts (1).
48. If equipped, disconnect electrical connector at the rear of engine mount.

Engine Mount Bracket Replacement - Left Side (4WD) — figure 22

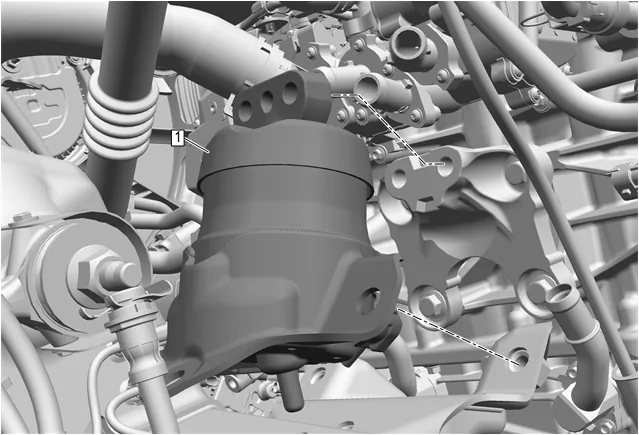

49. Engine Mount (1) » Remove

Engine Mount Bracket Replacement - Left Side (4WD) — figure 23

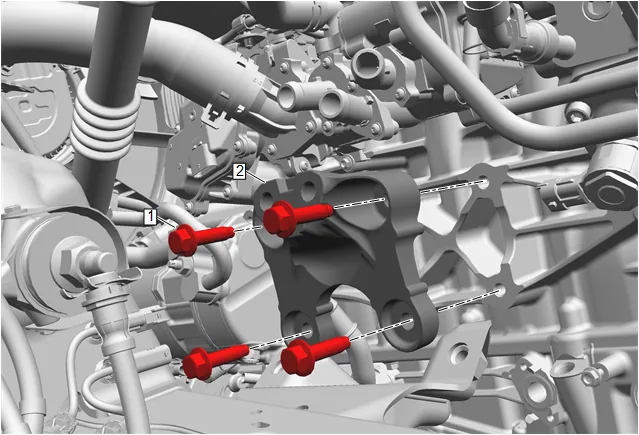

50. Engine Mount Bracket Bolt (1) » Remove [4x]
51. Engine Mount Bracket (2) » Remove Cleaning and Inspection Procedure - Conditional

Note

The following cleaning and inspection and/or overhaul steps are ONLY to be performed as determined necessary based on the condition of the part being removed with the intention of reinstallation. The labor time to perform any of these steps is not included in the base labor time and if required would need to be documented and submitted as Other Labor Hours for warranty claim reimbursement. A description of the repairs performed must be documented in the technician correction comments.

Engine Mount Bracket Replacement - Left Side (4WD) — figure 24

1. Clean the engine oil cooler (1,2).

2. Inspect the engine oil cooler (1,2).

3. Replace the engine oil cooler (1,2) if any damage is found. Installation Procedure

4. Engine Mount Bracket (2) » Install

Caution

Refer to Fastener Caution.

2. Engine Mount Bracket Bolt (1) » Install and tighten [4x] — Fastener Specifications

3. Engine Mount (1) » Install

4. If equipped, connect electrical connector at the rear of engine mount.

5. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 5.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 5.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 5.3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers 5.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

6. Install and tighten the 2 NEW engine mount engine side bolts (1). Fastener Specifications

7. Lower the engine.

8. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 8.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 8.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 8.3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers 8.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

9. Install and tighten the 3 NEW engine mount frame side bolts (1). Fastener Specifications

10. Remove the lifting device from the EN-36857 Engine Lift Bracket.

11. Position and attach engine coolant heater cord retainers as necessary.

12. Engine Oil Cooler Gasket (3) » Install NEW

13. Engine Oil Cooler Gasket (2) » Install NEW

14. Engine Oil Cooler (1) » Install

15. Engine Oil Cooler Bolt (1) » Install and tighten [5x] — Fastener Specifications

16. Engine Oil Cooler Coolant Inlet Hose (5) @ Engine Oil Cooler » Install

17. Automatic Transmission Fluid Cooling Heat Exchanger Outlet Hose (4) @ Engine Oil Cooler » Install

18. Engine Oil Cooler Coolant Outlet Hose (3) @ Engine Oil Cooler » Install

19. Engine Oil Cooler Coolant Inlet Hose Clamp (2) » Engage — Hose Clamp Replacement Guidelines - Spring Type

20. Thermostat Bypass Hose Clamp (1) » Engage [2x] — Hose Clamp Replacement Guidelines - Spring Type

21. Automatic Transmission Fluid Cooling Exchanger (1) » Install

22. Automatic Transmission Fluid Cooling Exchanger Bolt (1) » Install and tighten [2x] — Fastener Specifications

23. Automatic Transmission Fluid Cooling Exchanger Nut (2) » Install and tighten — Fastener Specifications

Note

Some components not shown for graphic clarity.

24. Remove the caps from the fittings and plugs from the holes before installing the transmission fluid cooler pipes.

25. Transmission Fluid Cooler Seal (2) » Install NEW

26. Transmission Fluid Cooler Pipe Seal (3) » Install NEW [2x]

27. Transmission Fluid Cooler Inlet and Outlet Pipe (1) » Install

28. Transmission Fluid Cooler Pipe Bolt (2) » Install and tighten — Fastener Specifications

29. Transmission Fluid Cooler Pipe Nut (1) » Install and tighten [2x] — Fastener Specifications

30. Fuel Heater Inlet and Outlet Bolt (3) » Install and tighten — Fastener Specifications

Engine Mount Bracket Replacement - Left Side (4WD) — figure 25

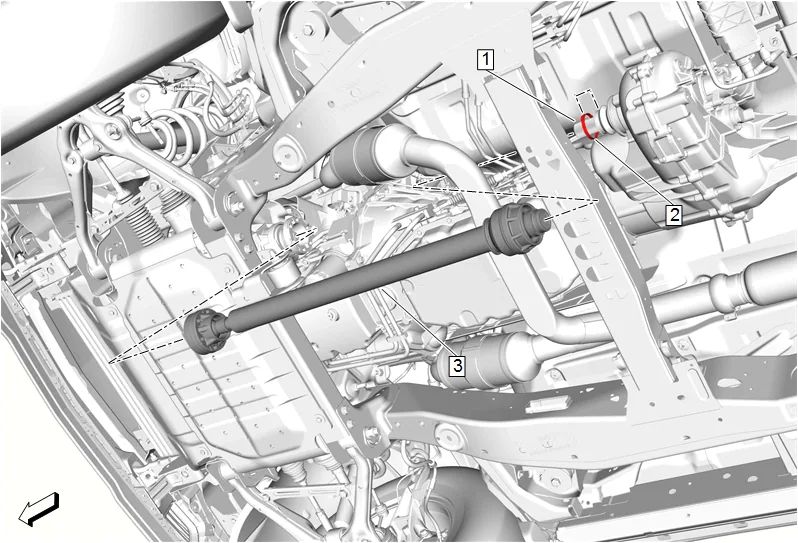

31. Front Axle Propeller Shaft (3) » Install

32. Align the reference marks made between the front axle propeller shaft (1) and the front differential drive pinion gear yoke.

33. Front Axle Propeller Shaft Washer (3) » Install [3x]

34. If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps: 34.1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth. 34.2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. 34.3. Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers 34.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

35. Install the 6 front axle propeller shaft bolts (2) and tighten in a crisscross pattern. Fastener Specifications

36. Automatic Transmission Fluid Cooling Heat Exchanger Inlet Hose (2) » Install

37. Automatic Transmission Fluid Cooling Heat Exchanger Inlet Hose Clamp (1) » Engage [2x] — Hose Clamp Replacement Guidelines - Spring Type

38. Automatic Transmission Fluid Cooling Heat Exchanger Outlet Hose (2) » Install

39. Automatic Transmission Fluid Cooling Heat Exchanger Outlet Hose Clamp (1) » Engage [2x] — Hose Clamp Replacement Guidelines - Spring Type

40. Front Wheelhouse Liner - Left Side » Install — Front Wheelhouse Liner Replacement

41. Remove the EN-36857 Engine Lift Bracket (1) from the front left side of the cylinder head using EN-51768 Engine Support Fixture Adaptor Bolt - M8 (2).

42. Turbocharger Coolant Feed and Return Pipe Gasket - Right Side Upper (1) » Install NEW

43. Install the right upper engine coolant air bleed pipe bolt (1). Fastener Specifications

44. { If equipped } Ground Cable (2) » Install

45. { If equipped } Engine Wiring Harness Ground Bolt (1) » Install and tighten — Ground Repair

46. Install the fuel injector wiring harness connector (1) to the engine coolant air bleed bracket.

Note

Some components not shown for graphic clarity.

47. Position the engine wiring harness channel (3) to the front of the engine.

48. Engine Wiring Harness Bracket Bolt (2) » Install and tighten — Fastener Specifications

49. Engine Wiring Harness Bracket Nut (1) » Install and tighten [2x] — Fastener Specifications

50. Oil Filler Cap » Remove

51. Intake Manifold Cover (2) » Install

52. Intake Manifold Cover Bolt (1) » Install and tighten — Fastener Specifications

53. Oil Filler Cap » Install

54. Fill the cooling system. Cooling System Draining and Filling

55. Fill the engine oil to the proper level with NEW engine oil. Engine Oil and Oil Filter Replacement

56. Check the transmission fluid level. Transmission Fluid Level and Condition Check
