Tahoe / Yukon Service Manual

Front Seat Removal and Installation

Removal Procedure

  1. Disable the SIR system. SIR Disabling and Enabling

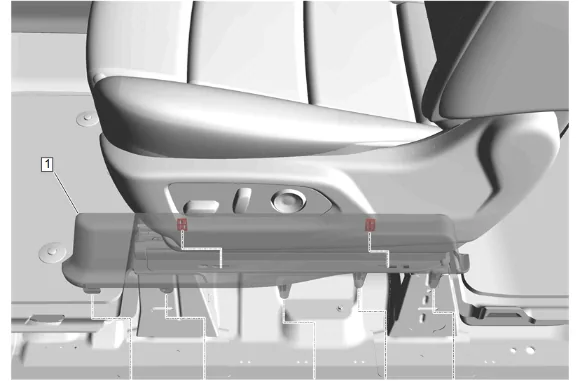

Front Seat Removal and Installation — figure 1
Front Seat Removal and Installation — figure 1
  1. Using a suitable plastic trim tool, gently pry upwards to release the retaining clips.
  2. Front Seat Adjuster Track Finish Cover (1) » Remove

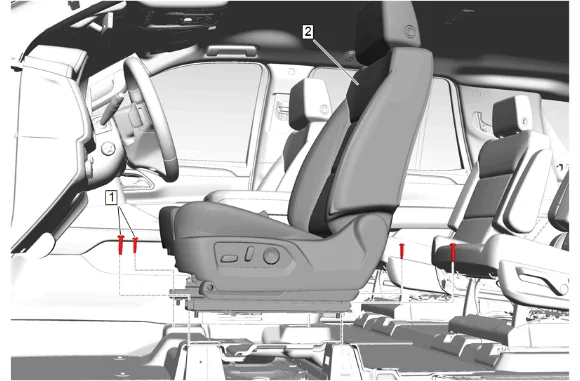

Front Seat Removal and Installation — figure 2
Front Seat Removal and Installation — figure 2

  1. Front Seat Bolt (1) » Remove [4x]

  2. Disconnect the electrical connector.

  3. Front Seat (2) » Remove Installation Procedure

  4. Front Seat (2) » Install

  5. Connect all electrical connectors.

  1. Front Seat Bolt (1) » Install and tighten [4x] — Fastener Specifications

  2. Front Seat Adjuster Track Finish Cover (1) » Install

  3. Enable the SIR System. SIR Disabling and Enabling
