Tahoe / Yukon Service Manual

Underbody Skid Shield Replacement (With WTX)

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

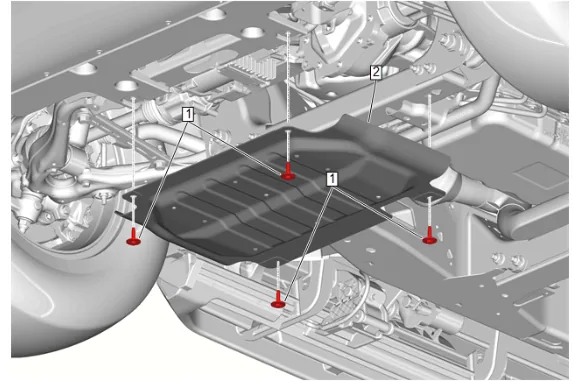

Underbody Skid Shield Replacement (With WTX) — figure 1
Underbody Skid Shield Replacement (With WTX) — figure 1

  1. Underbody Skid Shield Bolt (1) » Remove [4x]

  2. Underbody Skid Shield (2) » Remove Installation Procedure

  3. Underbody Skid Shield (2) » Install

  1. Underbody Skid Shield Bolt (1) » Install and tighten [4x] — Fastener Specifications
  2. Lower the vehicle.
