Front Bumper Impact Bar Replacement
Removal Procedure

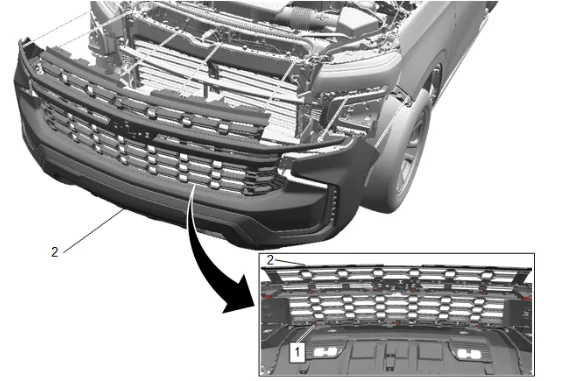

- Front Bumper Fascia (1) » Remove — Front Bumper Fascia Removal and Installation

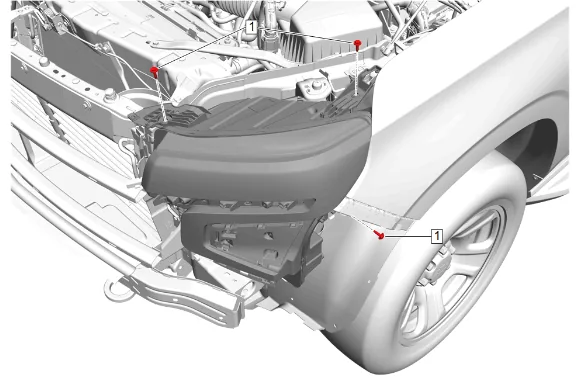

- Headlamp Bolt (1) » Remove [6x]

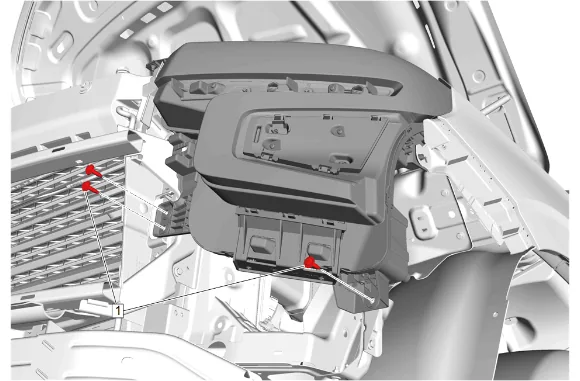

- Headlamp Bolt (1) » Remove [6x]

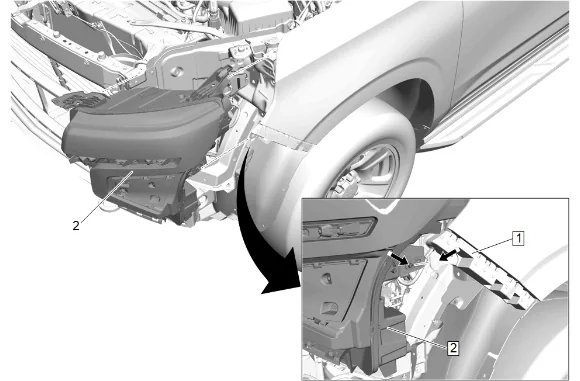

- Release the front headlamp guide pin from the front bumper fascia guide (1).
- Front Headlamp (2) » Remove [2x]
- Release the wiring harness retaining tab.
- Disconnect all electrical connectors.

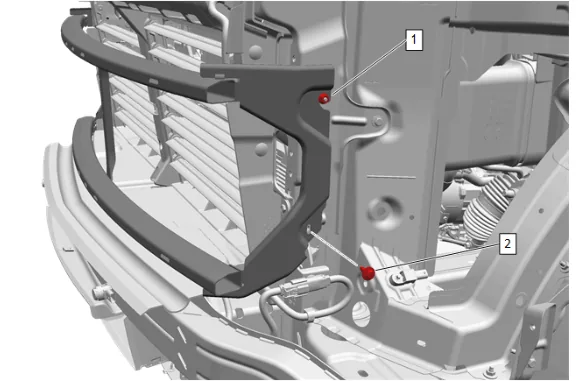

- Loosen the left and right side front bumper fascia upper stiffener nut (1).
- Remove the left and right side front bumper fascia upper stiffener bolt (2).

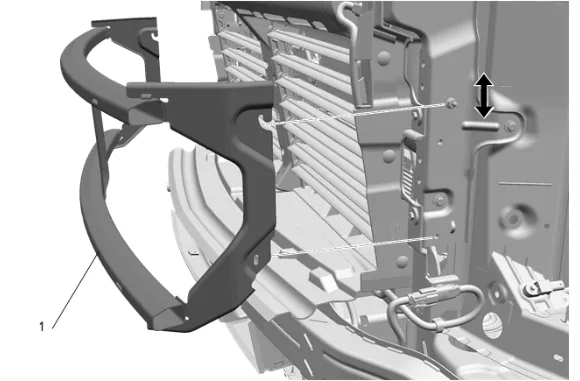

- Pull the front bumper fascia upper stiffener (1) up and out over the stud.

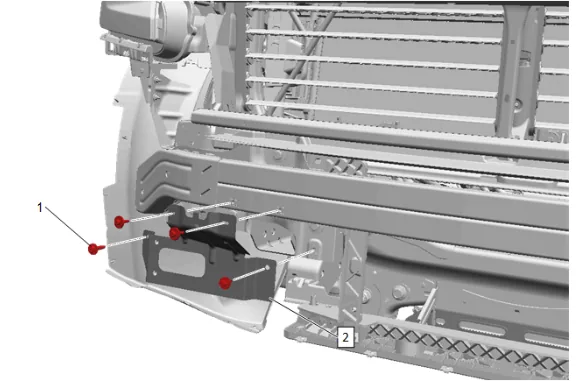

- { If equipped } Forward Range Radar Bracket Bolt (1) » Remove [4x]
- { If equipped } Forward Range Radar Bracket (2) » Remove
- { If equipped } Disconnect the electrical connector.
-
Reposition the wiring harness.
-

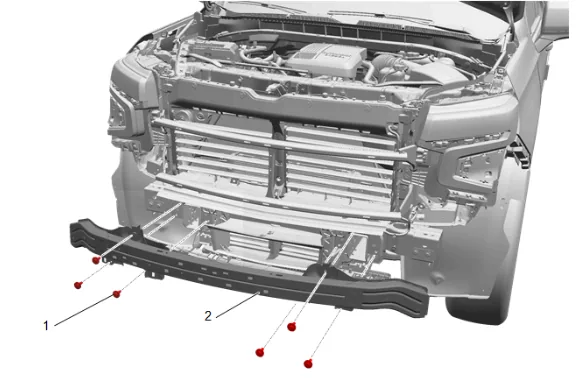

Front Bumper Impact Bar Bolt (1) » Remove [6x]
-
Front Bumper Impact Bar (2) » Remove Installation Procedure
-
Front Bumper Impact Bar (2) » Install
-
Front Bumper Impact Bar Bolt (1) » Install and tighten [6x] — Fastener Specifications
-
Install the wiring harness.
-
{ If equipped } Forward Range Radar Bracket (2) » Install
-
{ If equipped } Forward Range Radar Bracket Bolt (1) » Install [4x] — Fastener Specifications
-
{ If equipped } Connect the electrical connector.
-
Front Bumper Fascia Upper Stiffener (1) » Install
-
Install and tighten the left and right side front bumper fascia upper stiffener bolt (2). Fastener Specifications
-
Tighten the left and right side front bumper fascia upper stiffener nut (1). Fastener Specifications
-
Connect all electrical connectors.
-
Secure the wiring harness retaining tab.
-
Front Headlamp (2) » Install [2x]
-
Secure the front headlamp guide pin to the front bumper fascia guide (1).
-
Headlamp Bolt (1) » Install and tighten [6x] — Fastener Specifications
-
Headlamp Bolt (1) » Install and tighten [6x] — Fastener Specifications
-
Front Bumper Fascia (1) » Install — Front Bumper Fascia Removal and Installation
