Front Bumper Fascia Headlamp Opening Bracket Replacement - Upper

Front Bumper Fascia Headlamp Opening Bracket Replacement - Upper Removal Procedure

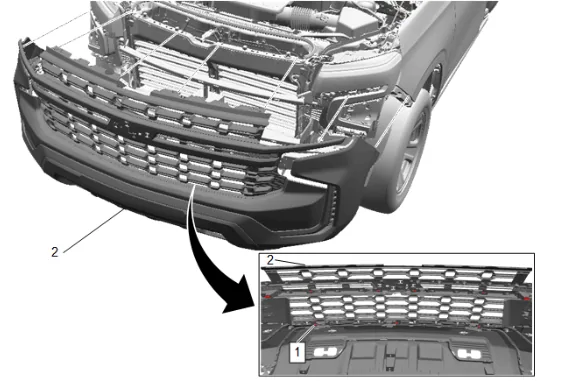

Front Bumper Fascia Headlamp Opening Bracket Replacement - Upper — figure 1

1. Front Bumper Fascia (1) » Remove — Front Bumper Fascia Removal and Installation

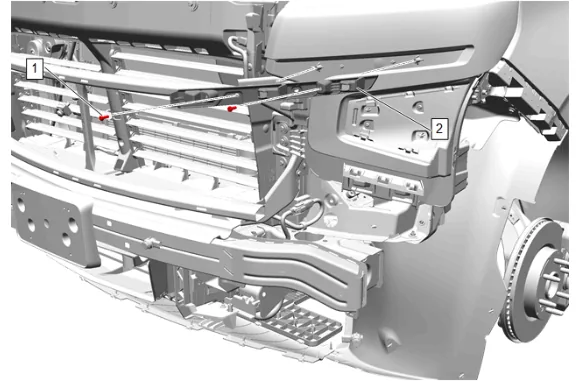

Front Bumper Fascia Headlamp Opening Bracket Replacement - Upper — figure 2

2. Front Bumper Fascia Headlamp Opening Bracket Bolt (1) » Remove [2x]

3. Front Bumper Fascia Headlamp Opening Bracket - Upper (2) » Remove Installation Procedure

4. Front Bumper Fascia Headlamp Opening Bracket - Upper (2) » Install

Caution

Refer to Fastener Caution.

2. Front Bumper Fascia Headlamp Opening Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

3. Front Bumper Fascia (1) » Install — Front Bumper Fascia Removal and Installation
