Rear Bumper Fascia Guide Replacement

Single Use Fasteners and Components Rear Bumper Fascia Guide Rivet [6x] Removal Procedure

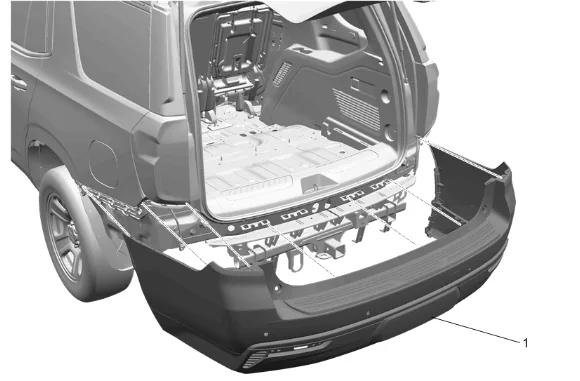

Rear Bumper Fascia Guide Replacement — figure 1
Rear Bumper Fascia Guide Replacement — figure 1
  1. Rear Bumper Fascia (1) » Remove — Rear Bumper Fascia Removal and Installation

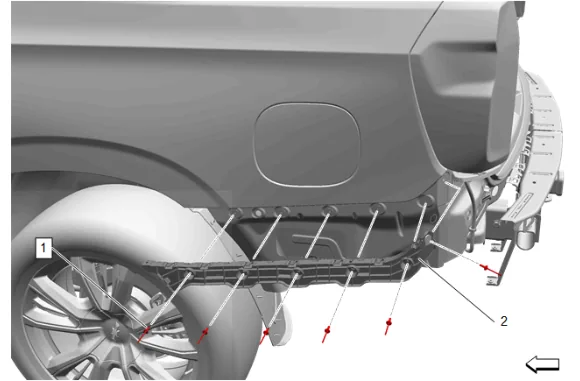

Rear Bumper Fascia Guide Replacement — figure 2
Rear Bumper Fascia Guide Replacement — figure 2

  1. Drill out the 6 rear bumper fascia guide rivets (1). Remove and DISCARD

  2. Rear Bumper Fascia Guide (2) » Remove Installation Procedure

  3. Rear Bumper Fascia Guide (2) » Install

  4. Rear Bumper Fascia Guide Rivet (1) » Install NEW [6x]

  5. Rear Bumper Fascia (1) » Install — Rear Bumper Fascia Removal and Installation
