Front Floor Panel Carpet Replacement (without Front Floor Speaker)

Front Floor Panel Carpet Replacement (without Front Floor Speaker) Removal Procedure

  1. Disable the SIR system. SIR Disabling and Enabling
  2. Remove the driver and the passenger seats. Front Seat Removal and Installation
  3. Remove the front floor console. Front Floor Console Removal and Installation
Front Floor Panel Carpet Replacement (without Front Floor Speaker) — figure 1
Front Floor Panel Carpet Replacement (without Front Floor Speaker) — figure 1
  1. Floor Rear Air Outlet Duct Adapter - Left Side (1) » Remove
Front Floor Panel Carpet Replacement (without Front Floor Speaker) — figure 2
Front Floor Panel Carpet Replacement (without Front Floor Speaker) — figure 2
  1. Floor Rear Air Outlet Duct Adapter - Right Side (1) » Remove
Front Floor Panel Carpet Replacement (without Front Floor Speaker) — figure 3
Front Floor Panel Carpet Replacement (without Front Floor Speaker) — figure 3

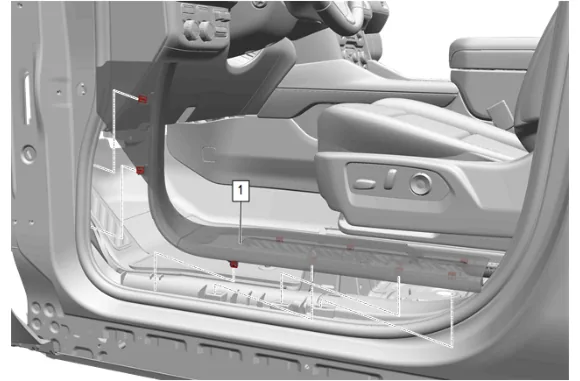

  1. Starting at the rear of the front side door sill garnish molding (1) pull upward at the b-pillar joint to disengage the garnish molding.
  2. Work your way forward disengaging all the front side door sill garnish molding retaining clips and then pull rearward to disengage the 2 retaining clips on the forward vertical wall.
  3. Front Side Door Sill Garnish Molding (1) » Remove [2x]
Front Floor Panel Carpet Replacement (without Front Floor Speaker) — figure 4
Front Floor Panel Carpet Replacement (without Front Floor Speaker) — figure 4

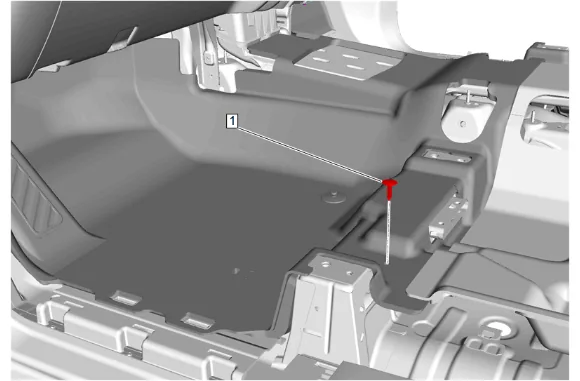

  1. Floor Carpet Retainer - Left Side (1) » Remove
Front Floor Panel Carpet Replacement (without Front Floor Speaker) — figure 5
Front Floor Panel Carpet Replacement (without Front Floor Speaker) — figure 5

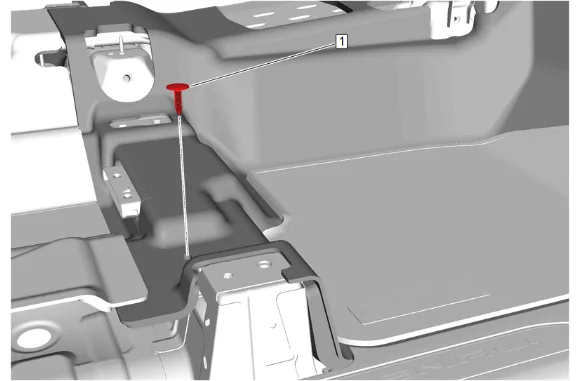

  1. Floor Carpet Retainer - Right Side (1) » Remove
Front Floor Panel Carpet Replacement (without Front Floor Speaker) — figure 6
Front Floor Panel Carpet Replacement (without Front Floor Speaker) — figure 6

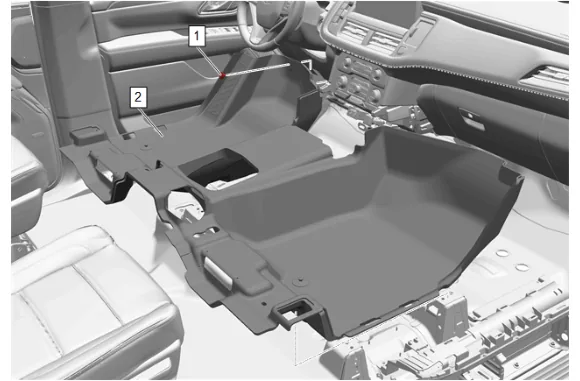

  1. Floor Carpet Retainer Button (1) » Remove

  2. Front Floor Panel Carpet (2) » Remove Installation Procedure

  3. Front Floor Panel Carpet (2) » Install

  4. Floor Carpet Retainer Button (1) » Install

  5. Floor Carpet Retainer - Right Side (1) » Install

  6. Floor Carpet Retainer - Left Side (1) » Install

  7. Starting at the front of the front side door sill garnish molding (1) engage the 2 retaining clips on the forward vertical wall.

  8. Work your way rearward engaging all the front side door sill garnish molding retaining clips.

  9. Front Side Door Sill Garnish Molding (1) » Install [2x]

  10. Floor Rear Air Outlet Duct Adapter - Right Side (1) » Install

  11. Floor Rear Air Outlet Duct Adapter - Left Side (1) » Install

  12. Install the front floor console. Front Floor Console Removal and Installation

  13. Install the driver and the passenger seats. Front Seat Removal and Installation

  14. Enable the SIR System. SIR Disabling and Enabling
