Tahoe / Yukon Service Manual

Bosch Connectors (BSK)

Wiring Systems and Power Management | Diagnostic Information and Procedures | Document ID: 5207140 Special Tools EL-38125-550 Terminal Release Tool Kit EL-38125-580 Terminal Release Tool Kit J-38125-561 Terminal Release Tool For equivalent regional tools, refer to Special Tools. Terminal Removal Procedure

  1. Disconnect the connector from the component.
  2. Remove the wire dress cover, if necessary.
  3. Push the wire side of the terminal that is being removed toward the connector and hold it in position.

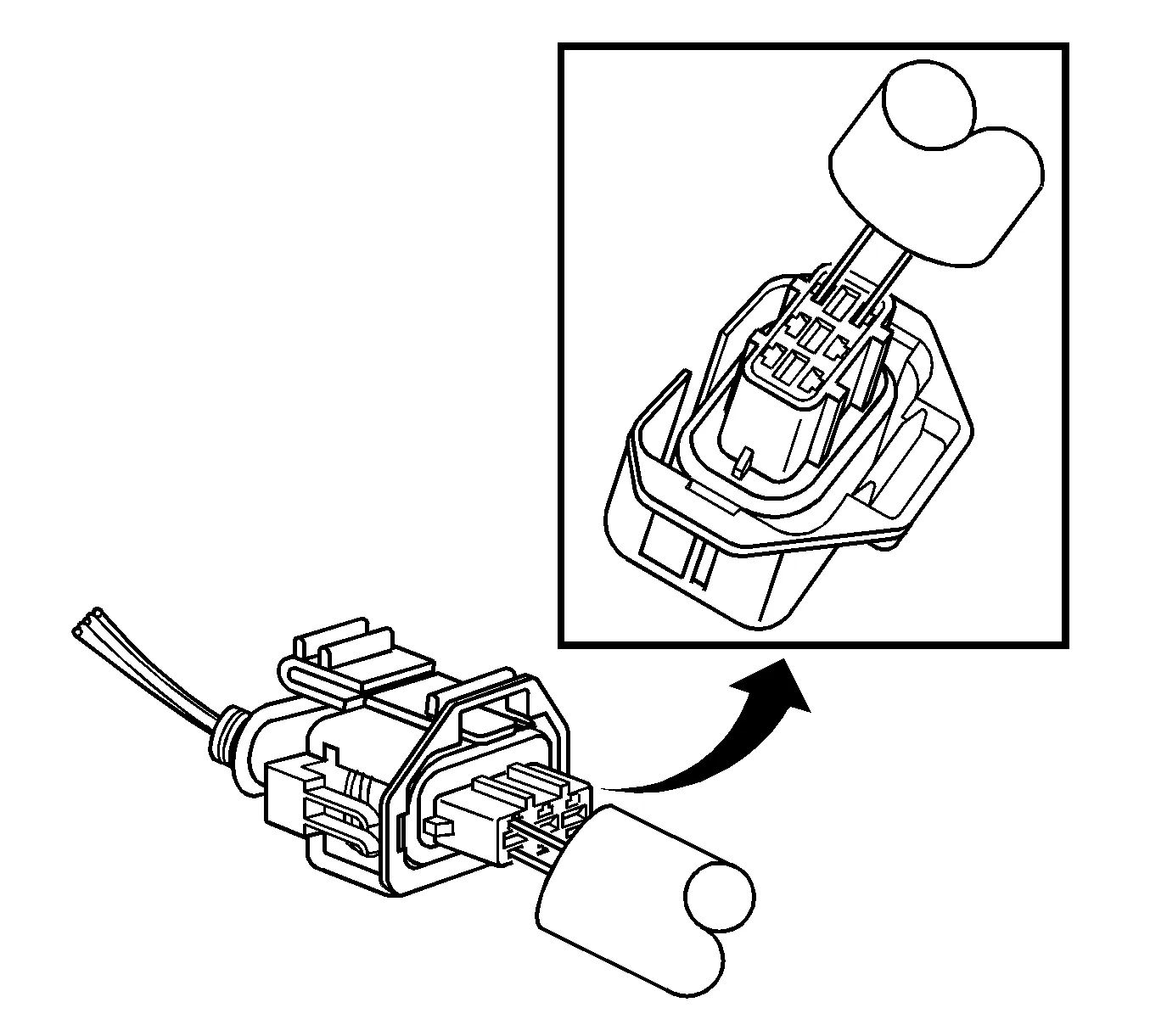

Bosch Connectors (BSK) — figure 1
Bosch Connectors (BSK) — figure 1
  1. Insert the J-38125-561 tool into the 2 cavities on each side of the terminal at the front of the connector and push until you feel the tool disengage the terminal retainers.
  2. Carefully pull the terminal out of the connector. Always remember never use force when pulling a terminal out of a connector. If the terminal is difficult to remove, repeat the entire procedure.
  3. Repair the terminal by following the Repairing Connector Terminals procedure.
  4. Insert the repaired terminal back into the cavity. Repeat the diagnostic procedure to verify the repair and reconnect the connector bodies.
