Forward Range Radar Sensor Replacement

Removal Procedure

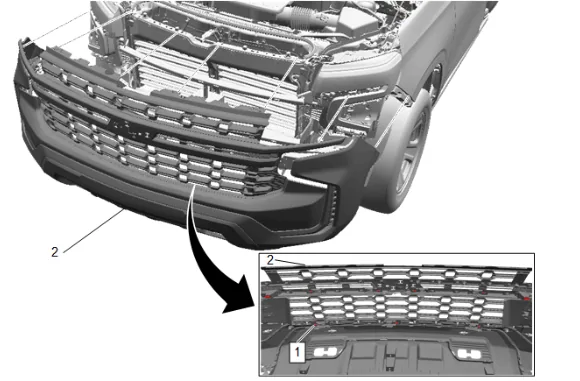

Forward Range Radar Sensor Replacement — figure 1
Forward Range Radar Sensor Replacement — figure 1
  1. Front Bumper Fascia (1) » Remove — Front Bumper Fascia Removal and Installation

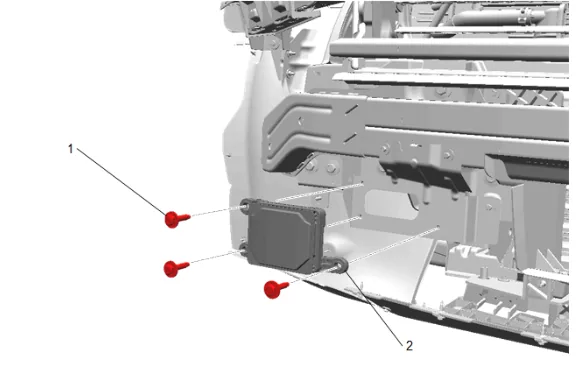

Forward Range Radar Sensor Replacement — figure 2
Forward Range Radar Sensor Replacement — figure 2

  1. Disconnect the electrical connector.

  2. Forward Range Radar Sensor Bolt (1) » Remove [3x]

  3. Forward Range Radar Sensor (2) » Remove Installation Procedure

  4. Forward Range Radar Sensor (2) » Install

  1. Forward Range Radar Sensor Bolt (1) » Install and tighten [3x] — Fastener Specifications

  2. Connect the electrical connector.

  3. Front Bumper Fascia (1) » Install — Front Bumper Fascia Removal and Installation

  4. Perform the forward range radar sensor module learn. Radar Sensor Module - Long Range Learn
