3rd Row Seat Pull Strap Replacement

Removal Procedure

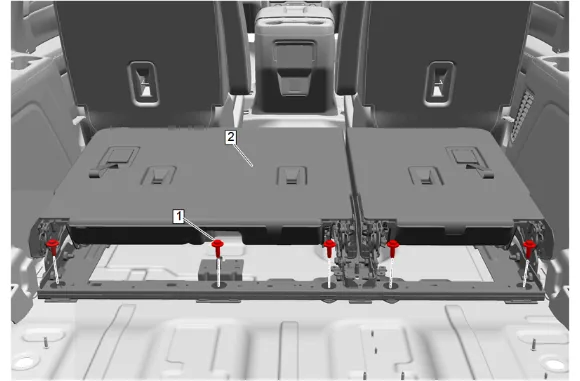

3rd Row Seat Pull Strap Replacement — figure 1

1. 3rd Row Seat (2) » Remove — 3rd Row Seat Removal and Installation

3rd Row Seat Pull Strap Replacement — figure 2

2. Using a suitable plastic trim tool, release the retaining tabs.
3. 3rd Row Seat Back Latch Release Handle Bezel (1) » Remove
4. Feed the 3rd row seat pull strap through the bezel to remove.

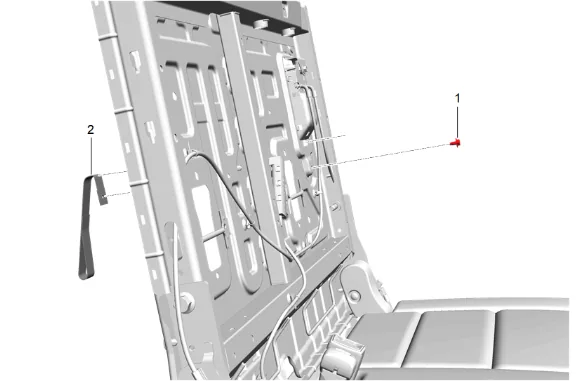

3rd Row Seat Pull Strap Replacement — figure 3

Note

Some components not shown for graphic clarity.

5. Unzip the seat back cover zipper.

6. Reposition the seat back cover and pad as necessary.

7. Rear Seat Bolt (1) » Remove

8. 3rd Row Seat Pull Strap (2) » Remove Installation Procedure

9. 3rd Row Seat Pull Strap (2) » Install

Caution

Refer to Fastener Caution.

2. Rear Seat Bolt (1) » Install and tighten — Fastener Specifications
3. Return the seat back cover and pad to the original position.

Note

Hold both sides of the seat cover together while pulling straight down on the zipper.

4. Zip the seat back cover zipper.

5. Feed the 3rd row seat pull strap through the bezel to install.

6. 3rd Row Seat Back Latch Release Handle Bezel (1) » Install

7. 3rd Row Seat (2) » Install — 3rd Row Seat Removal and Installation
