Tahoe / Yukon Service Manual

Front Seat Armrest Cup Holder Replacement

Removal Procedure

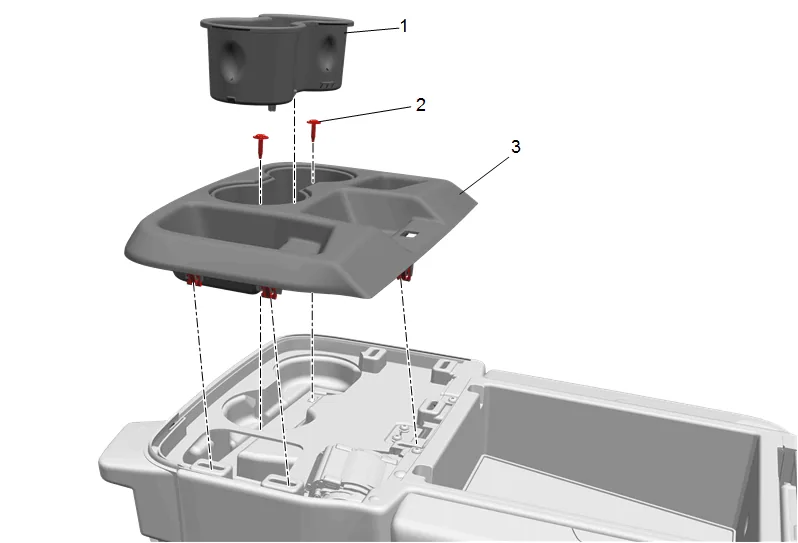

Front Seat Armrest Cup Holder Replacement — figure 1
Front Seat Armrest Cup Holder Replacement — figure 1

  1. Front Center Seat Cup Holder (1) » Remove

  2. Front Seat Armrest Cup Holder Bolt (2) » Remove [2x]

  3. Using a suitable trim tool, release the front seat armrest cup holder retainers.

  4. Front Seat Armrest Cup Holder (3) » Remove Installation Procedure

  5. Front Seat Armrest Cup Holder (3) » Install

  1. Front Seat Armrest Cup Holder Bolt (2) » Install and tighten [2x] — Fastener Specifications
  2. Front Center Seat Cup Holder (1) » Install
