3rd Row Seat Belt Buckle Replacement (40 Percent and Center Buckle)

3rd Row Seat Belt Buckle Replacement (40 Percent and Center Buckle) Removal Procedure

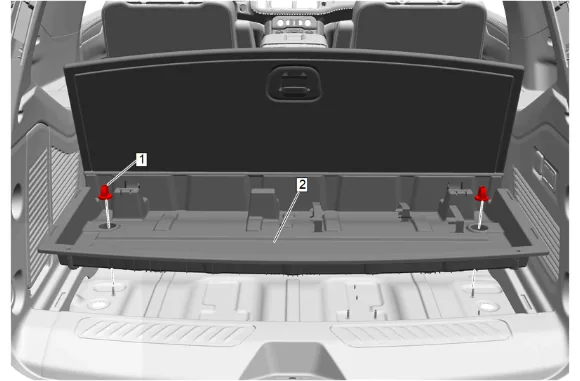

3rd Row Seat Belt Buckle Replacement (40 Percent and Center Buckle) — figure 1
3rd Row Seat Belt Buckle Replacement (40 Percent and Center Buckle) — figure 1
  1. Rear Compartment Floor Stowage Compartment Divider Retainer (1) » Remove [2x]
  2. Rear Compartment Floor Stowage Trim Compartment (2) » Remove
3rd Row Seat Belt Buckle Replacement (40 Percent and Center Buckle) — figure 2
3rd Row Seat Belt Buckle Replacement (40 Percent and Center Buckle) — figure 2
  1. 3rd Row Seat Nut (1) » Remove
  2. Disconnect the electrical connectors and reposition the wiring harness.

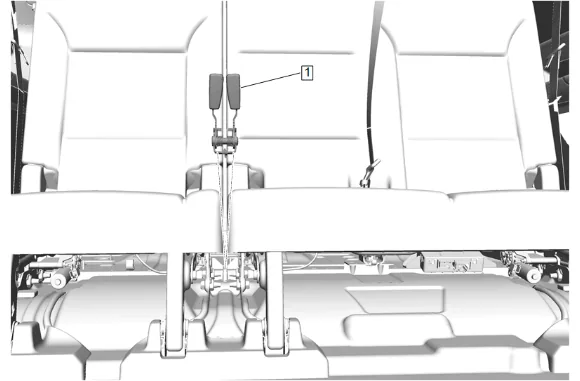

3rd Row Seat Belt Buckle Replacement (40 Percent and Center Buckle) — figure 3
3rd Row Seat Belt Buckle Replacement (40 Percent and Center Buckle) — figure 3

  1. 3rd Row Seat Belt Buckle (1) » Remove Installation Procedure

  2. 3rd Row Seat Belt Buckle (1) » Install

  3. Connect the electrical connectors and install the wiring harness.

  1. 3rd Row Seat Nut (1) » Install and tighten — Fastener Specifications

  2. Rear Compartment Floor Stowage Trim Compartment (2) » Install

  1. Rear Compartment Floor Stowage Compartment Divider Retainer (1) » Install and tighten [2x] — Fastener Specifications
