Tahoe / Yukon Service Manual

Stabilizer Shaft Insulator Replacement

Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

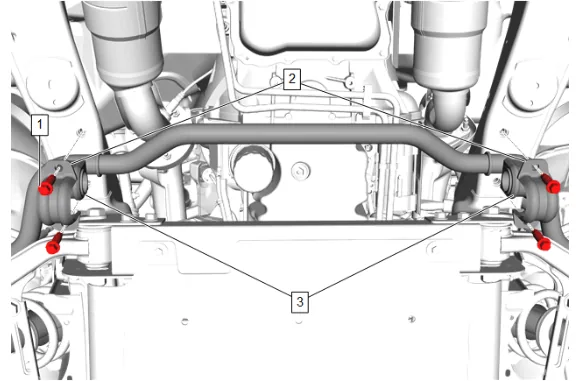

Stabilizer Shaft Insulator Replacement — figure 1
Stabilizer Shaft Insulator Replacement — figure 1
  1. Front Stabilizer Shaft Bolt (1) » Remove [4x]
  2. Front Stabilizer Shaft Clamp (2) » Remove [2x]
  3. Front Stabilizer Shaft Insulator (3) » Remove [2x] Installation Procedure
  1. Front Stabilizer Shaft Insulator (3) » Install [2x]
  2. Front Stabilizer Shaft Clamp (2) » Install [2x]
  3. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 3.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 3.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 3.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 3.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  1. Front Stabilizer Shaft Bolt (1) » Install and tighten [4x] — Fastener Specifications
