Tahoe / Yukon Service Manual

Front Bumper Fascia Outer Air Duct Replacement

Removal Procedure

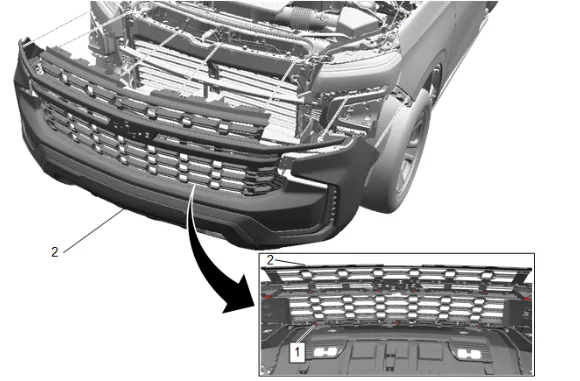

Front Bumper Fascia Outer Air Duct Replacement — figure 1
Front Bumper Fascia Outer Air Duct Replacement — figure 1
  1. Front Bumper Fascia (1) » Remove — Front Bumper Fascia Removal and Installation

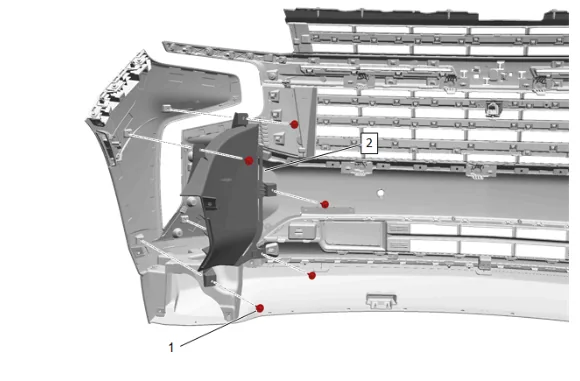

Front Bumper Fascia Outer Air Duct Replacement — figure 2
Front Bumper Fascia Outer Air Duct Replacement — figure 2

  1. Reposition the wiring harness.

  2. Front Bumper Fascia Bolt (1) » Remove [5x]

  3. Front Bumper Fascia Outer Air Duct (2) » Remove Installation Procedure

  4. Front Bumper Fascia Outer Air Duct (2) » Install

  1. Front Bumper Fascia Bolt (1) » Install and tighten [5x] — Fastener Specifications

  2. Install the wiring harness.

  3. Front Bumper Fascia (1) » Install — Front Bumper Fascia Removal and Installation
