Rear Wheel Speed Sensor Replacement - Right Side

Warning

Brake Dust Warning Removal Procedure

1. Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation

Rear Wheel Speed Sensor Replacement - Right Side — figure 1

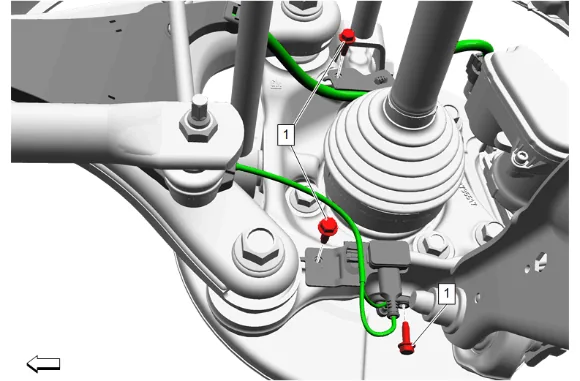

2. Chassis Rear Wiring Harness Bracket Bolt (1) » Remove [3x]

Rear Wheel Speed Sensor Replacement - Right Side — figure 2

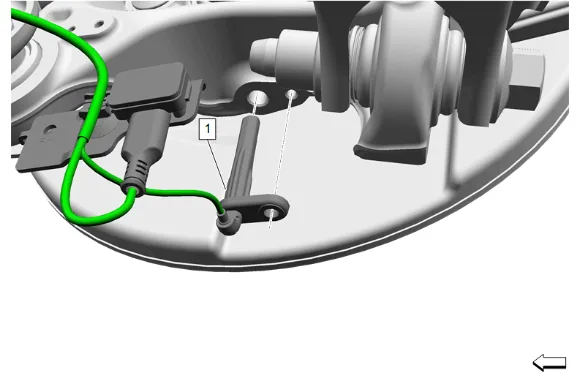

3. Rear Wheel Speed Sensor (1) » Remove

Rear Wheel Speed Sensor Replacement - Right Side — figure 3

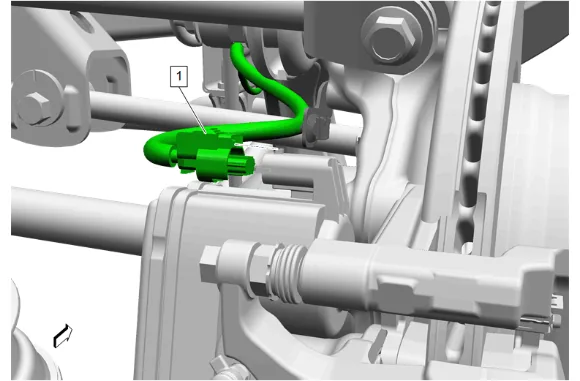

4. Electrical Connector (1) @ Rear Parking Brake Actuator » Disconnect

Rear Wheel Speed Sensor Replacement - Right Side — figure 4

Note

Left side shown, right side similar.

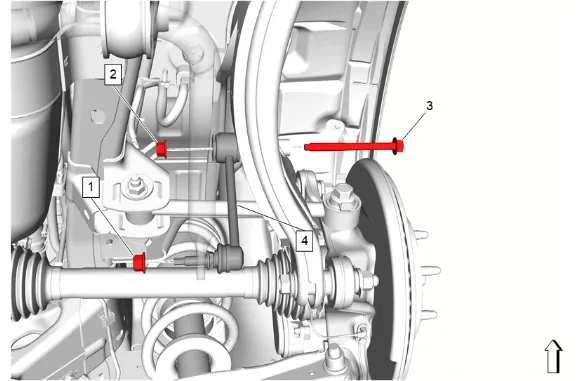

5. Rear Stabilizer Shaft Link Nut - Upper (2) » Remove
6. Rear Stabilizer Shaft Link Bolt (3) » Remove
7. Rear Stabilizer Shaft Link (4) @ Rear Suspension Trailing Arm » Reposition

Rear Wheel Speed Sensor Replacement - Right Side — figure 5

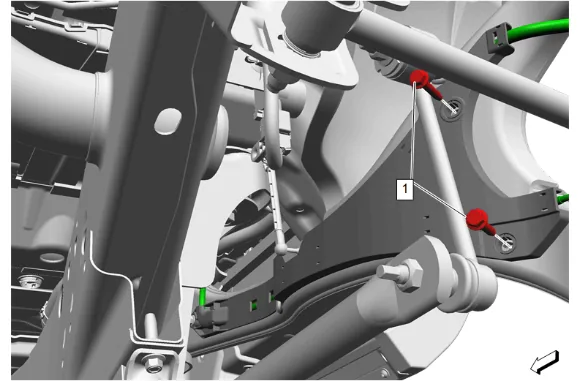

8. Chassis Rear Wiring Harness Bracket Bolt (1) » Remove [2x]

Rear Wheel Speed Sensor Replacement - Right Side — figure 6

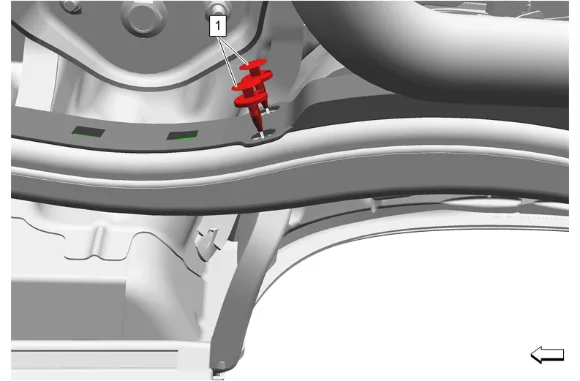

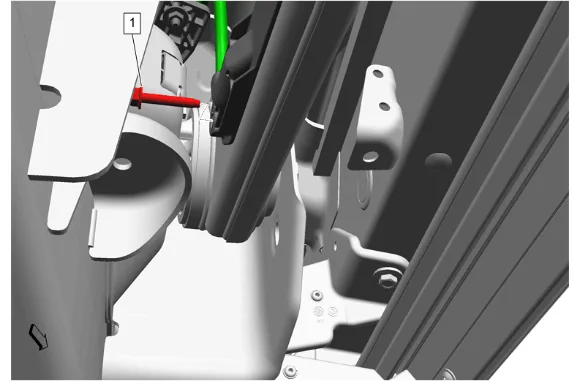

9. Chassis Rear Wiring Harness Clip (1) » Remove [2x]

Rear Wheel Speed Sensor Replacement - Right Side — figure 7

10. Chassis Rear Wiring Harness Bracket Bolt (1) » Remove

Rear Wheel Speed Sensor Replacement - Right Side — figure 8

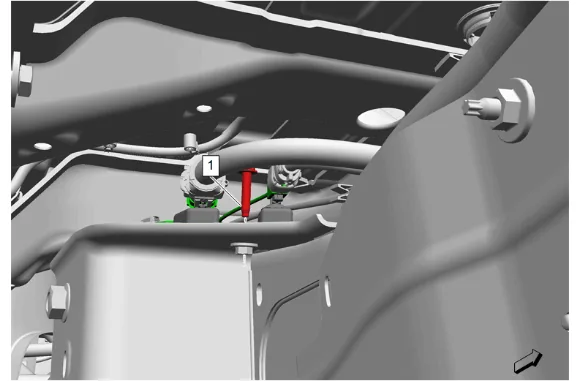

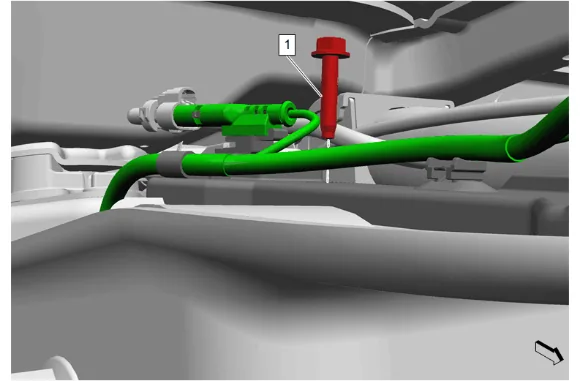

11. Chassis Rear Wiring Harness Bracket Bolt (1) » Remove

Rear Wheel Speed Sensor Replacement - Right Side — figure 9

12. Chassis Rear Wiring Harness Bracket Bolt (1) » Remove

Rear Wheel Speed Sensor Replacement - Right Side — figure 10

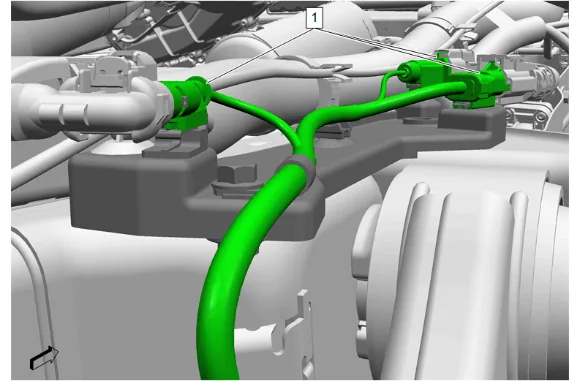

13. Disconnect the 3 chassis rear wiring harness extension harness connectors (1).

Rear Wheel Speed Sensor Replacement - Right Side — figure 11

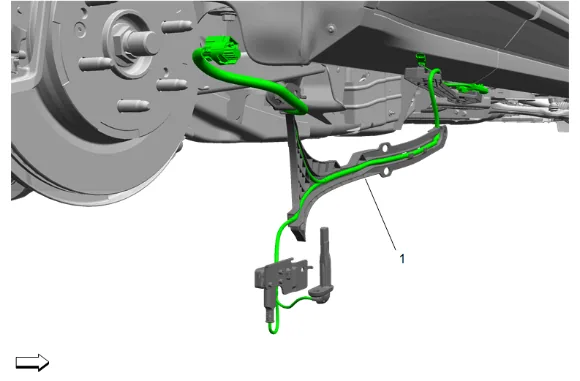

14. Remove the chassis rear wiring harness extension harness (1) from the vehicle. Installation Procedure

15. Install the chassis rear wiring harness extension harness (1).

16. Connect the 3 chassis rear wiring harness extension harness connectors (1).

Caution

Fastener Caution

3. Chassis Rear Wiring Harness Bracket Bolt (1) » Install and tighten — Fastener Specifications

4. Chassis Rear Wiring Harness Bracket Bolt (1) » Install and tighten — Fastener Specifications

5. Chassis Rear Wiring Harness Bracket Bolt (1) » Install and tighten — Fastener Specifications

6. Chassis Rear Wiring Harness Clip (1) » Install [2x]

7. Chassis Rear Wiring Harness Bracket Bolt (1) » Install and tighten [2x] — Fastener Specifications

Note

Left side shown, right side similar.

8. Rear Stabilizer Shaft Link (4) » Install

9. Rear Stabilizer Shaft Link Bolt (3) » Install

10. Rear Stabilizer Shaft Link Nut - Upper (2) » Install

11. Rear Stabilizer Shaft Link Bolt (3) » Tighten — Fastener Specifications

12. Electrical Connector (1) @ Rear Parking Brake Actuator » Connect

13. Apply a light coat of wheel speed anti-corrosion grease to the rear wheel speed sensor (1) and mounting pad on the rear steering knuckle.  Adhesives, Fluids, Lubricants, and Sealers

14. Rear Wheel Speed Sensor (1) » Install

15. Chassis Rear Wiring Harness Bracket Bolt (1) » Install and tighten [3x] — Fastener Specifications

16. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation

17. Verify the repair is complete. Diagnostic Repair Verification
