Instrument Panel Compartment Door Dampener Replacement

Instrument Panel Compartment Door Dampener Replacement Removal Procedure

1. Open the door.

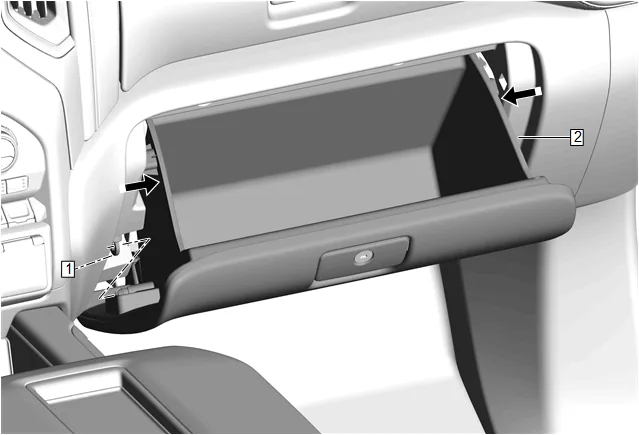

Instrument Panel Compartment Door Dampener Replacement — figure 1

2. Disconnect the instrument panel compartment door dampener (1) from the instrument panel compartment door (2).
3. Squeeze the sides of the compartment door (2) and lower the compartment door past the stops.

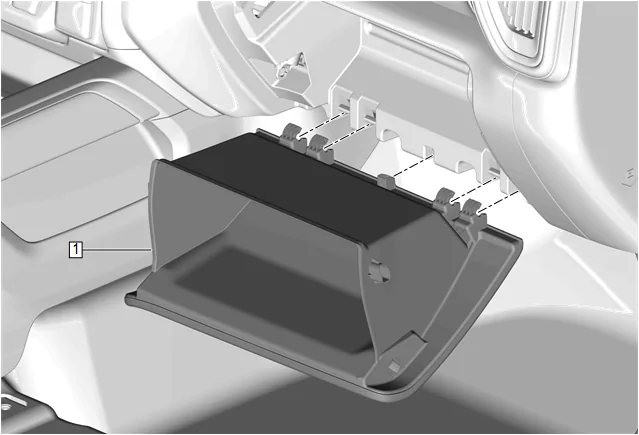

Instrument Panel Compartment Door Dampener Replacement — figure 2

4. Instrument Panel Compartment Door (1) » Remove

Instrument Panel Compartment Door Dampener Replacement — figure 3

5. Using a suitable tool, remove the instrument panel compartment door dampener (1). Installation Procedure

6. Instrument Panel Compartment Door Dampener (1) » Install

7. Instrument Panel Compartment Door (1) » Install

8. Squeeze the sides of the compartment door (2) and install the compartment door past the stops.

9. Connect the instrument panel compartment door dampener (1) to the instrument panel compartment door (2).

10. Close the door.
