Trailer Tire Pressure Indicator Module Replacement

Removal Procedure

1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
2. Raise and support the vehicle. Lifting and Jacking the Vehicle

Trailer Tire Pressure Indicator Module Replacement — figure 1

3. Turn the 2 rear bumper fascia trailer hitch cover retainers (1)  a quarter turn counter clockwise and remove.
4. Carefully release the tabs and pull the rear bumper fascia trailer hitch cover (2)  down from the rear bumper fascia.

Trailer Tire Pressure Indicator Module Replacement — figure 2

5. Electrical Connector (1) @ Trailer Tire Pressure Indicator Module » Disconnect

Trailer Tire Pressure Indicator Module Replacement — figure 3

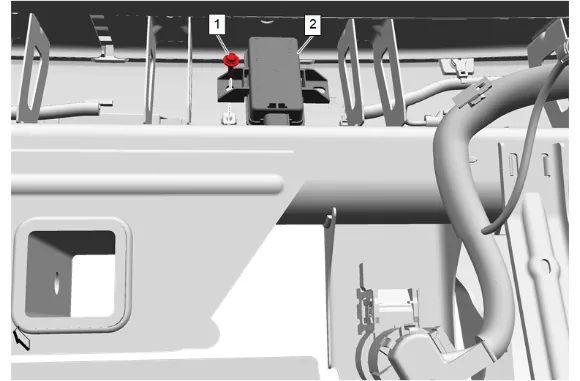

6. Trailer Tire Pressure Indicator Module Bolt (1) » Remove

7. Trailer Tire Pressure Indicator Module (2) » Remove Installation Procedure

8. Trailer Tire Pressure Indicator Module (2) » Install

Caution

Refer to Fastener Caution.

2. Trailer Tire Pressure Indicator Module Bolt (1) » Install and tighten — Fastener Specifications

3. Electrical Connector (1) @ Trailer Tire Pressure Indicator Module » Connect

4. Rear Bumper Fascia Trailer Hitch Cover (2) » Install

5. Rear Bumper Fascia Trailer Hitch Cover Retainer (1) » Install [2x]

6. Remove the support and lower the vehicle.

7. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

8. Perform the trailer tire pressure sensor manual learn. Trailer Tire Pressure Sensor Manual Learn
