Tahoe / Yukon Service Manual

Liftgate Replacement (without TC2)

Liftgate Replacement (without TC2) — figure 1
Liftgate Replacement (without TC2) — figure 1

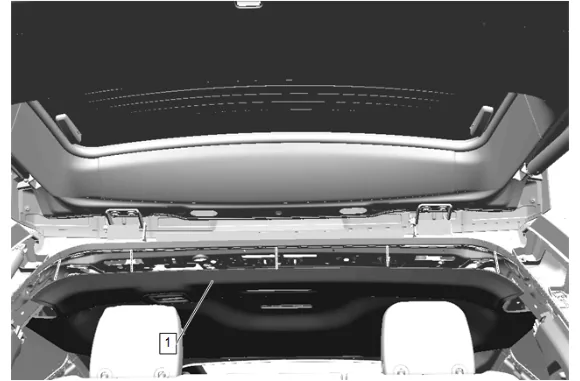

  1. Lower the headlining trim panel (1) enough to gain access to the liftgate electrical connectors and washer hose.
Liftgate Replacement (without TC2) — figure 2
Liftgate Replacement (without TC2) — figure 2

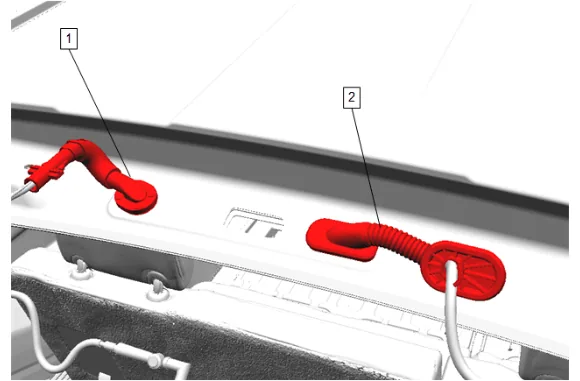

  1. Disconnect the washer hose and electrical connector and retainers..
  2. Washer Hose Grommet (1) » Remove
  3. Liftgate Wiring Harness Grommet (2) » Remove
Liftgate Replacement (without TC2) — figure 3
Liftgate Replacement (without TC2) — figure 3

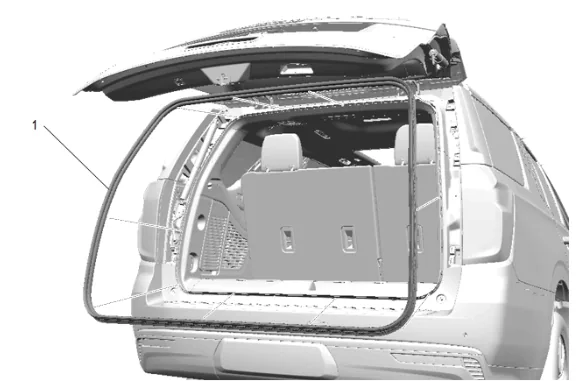

  1. Liftgate Weatherstrip (1) » Reposition
Liftgate Replacement (without TC2) — figure 4
Liftgate Replacement (without TC2) — figure 4

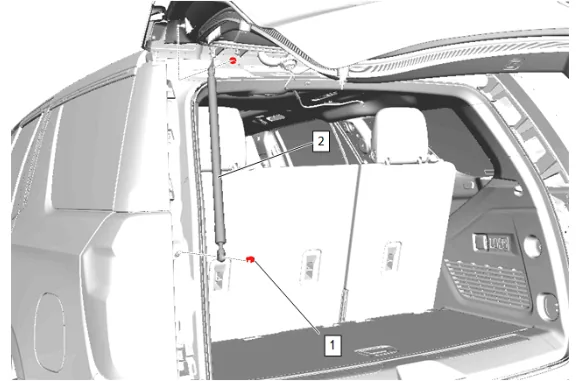

  1. Remove the 2 metal clips (1) at the ends of the liftgate strut (2).
  2. Liftgate Strut - Left Side (2) » Remove
Liftgate Replacement (without TC2) — figure 5
Liftgate Replacement (without TC2) — figure 5

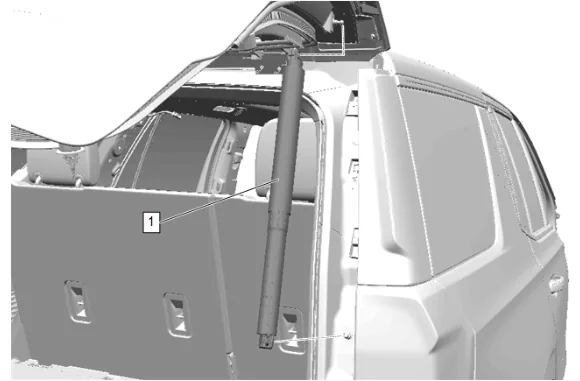

  1. Release the 2 metal clips at each end of the liftgate strut.
  2. Liftgate Strut - Right Side (1) » Remove
Liftgate Replacement (without TC2) — figure 6
Liftgate Replacement (without TC2) — figure 6

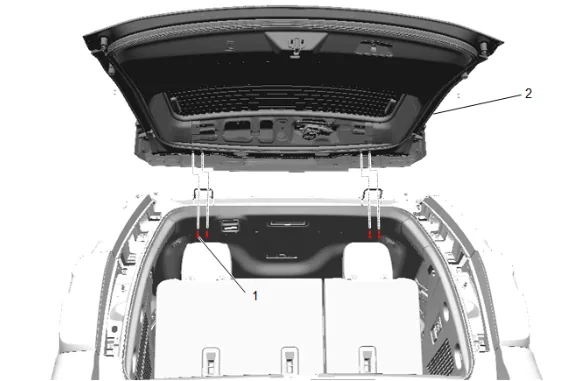

  1. Liftgate Hinge Bolt (1) » Remove [4x]

  2. With the aid of an assistant, remove the liftgate. (2) Installation Procedure

  3. With the aid of an assistant, install the liftgate. (2)

  1. Liftgate Hinge Bolt (1) » Install and tighten [4x] — Fastener Specifications
  1. Liftgate Strut - Left Side (2) » Install
  2. Install the 2 metal clips (1)  to each end of the liftgate strut (2).

  1. Liftgate Strut - Right Side (1) » Install

  2. Install the 2 metal clips at each end of the liftgate strut.

  3. Connect the washer hose and electrical connector and retainers..

  4. Liftgate Wiring Harness Grommet (2) » Install

  5. Washer Hose Grommet (1) » Install

  6. Liftgate Weatherstrip (1) » Install
