Rear Brake Caliper Bracket Replacement

Warning

The battery must be disconnected to prevent the brake master cylinder from pressurizing the hydraulic system during its automated self diagnostic tests that can possibly occur when a door is opened or the key transmitter is activated. Failure to follow this precaution may cause personal injury.

Warning

Brake Dust Warning

Note

Only the left rear wheel is equipped with the rear disc brake pad wear sensor. Removal Procedure

1. Set the parking brake in Service Mode. Parking Brake Service Mode Selection
2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
3. Raise and support the vehicle. Lifting and Jacking the Vehicle
4. Remove the tire and wheel assembly. Tire and Wheel Removal and Installation

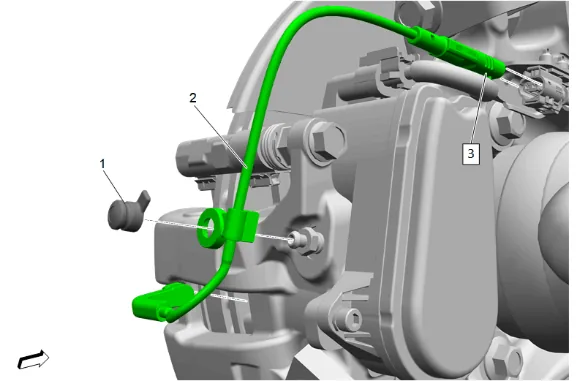

Rear Brake Caliper Bracket Replacement — figure 1

5. Rear Brake Bleeder Valve Cap (1) » Remove
6. Disconnect the electrical connector. (3)
7. Rear Disc Brake Pad Wear Sensor (2) » Remove

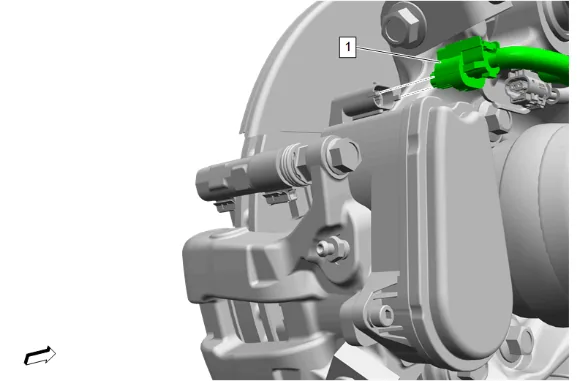

Rear Brake Caliper Bracket Replacement — figure 2

8. Electrical Connector (1) @ Rear Parking Brake Actuator » Disconnect

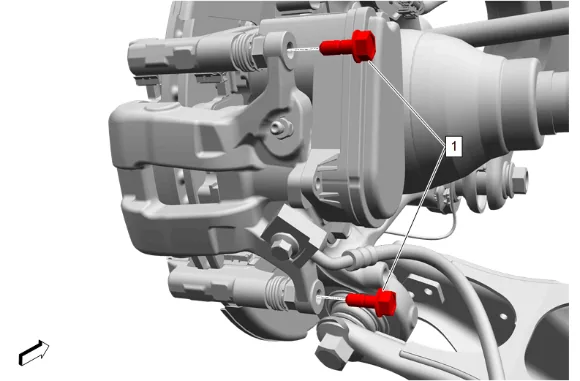

Rear Brake Caliper Bracket Replacement — figure 3

Note

DO NOT use any air tools to remove or install the guide pin bolts. Use hand tools ONLY.

9. Rear Brake Caliper Guide Pin Bolt (1) » Remove [2x]

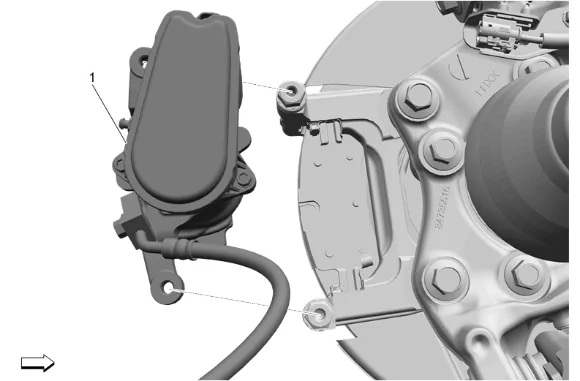

Rear Brake Caliper Bracket Replacement — figure 4

Caution

Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.

Note

It is not necessary to disconnect the rear brake hose.

10. Remove the rear brake caliper (1) and support it with heavy mechanics wire.

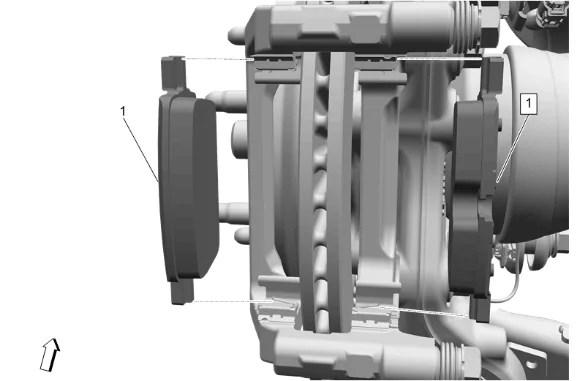

Rear Brake Caliper Bracket Replacement — figure 5

11. Rear Disc Brake Pad (1) » Remove [2x]

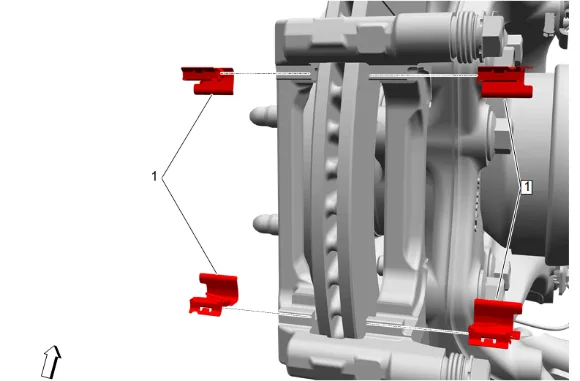

Rear Brake Caliper Bracket Replacement — figure 6

12. Rear Disc Brake Pad Spring (1) » Remove [4x]

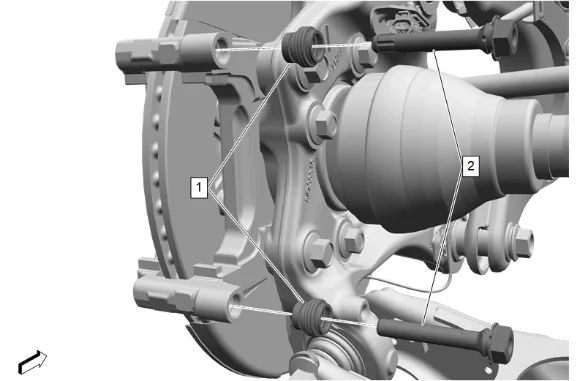

Rear Brake Caliper Bracket Replacement — figure 7

13. Rear Brake Caliper Guide Pin (2) » Remove [2x]
14. Rear Brake Caliper Guide Pin Boot (1) » Remove [2x]

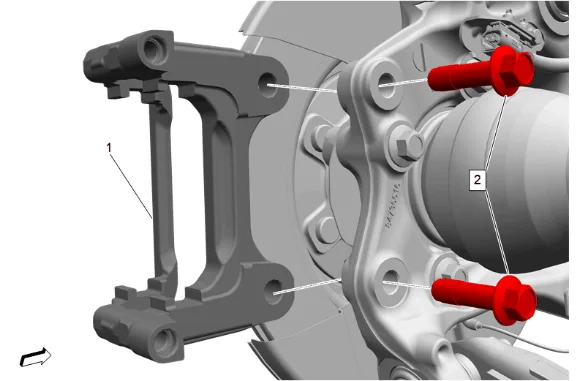

Rear Brake Caliper Bracket Replacement — figure 8

15. Rear Brake Caliper Bracket Bolt (2) » Remove [2x]

16. Rear Brake Caliper Bracket (1) » Remove Installation Procedure

17. If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps: 1.1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth. 1.2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive. 1.3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers 1.4. Ensure there are no gaps in the thread locking adhesive once applied to the component.

18. Rear Brake Caliper Bracket (1) » Install

Caution

Fastener Caution

3. Rear Brake Caliper Bracket Bolt (2) » Install and tighten [2x] — Fastener Specifications

4. Rear Brake Caliper Guide Pin Boot (1) » Install [2x]

5. Rear Brake Caliper Guide Pin (2) » Install [2x]

6. Rear Disc Brake Pad Spring (1) » Install [4x]

7. Rear Disc Brake Pad (1) » Install [2x]

8. Rear Brake Caliper (1) » Install

Note

DO NOT use any air tools to remove or install the guide pin bolts. Use hand tools ONLY.

9. Rear Brake Caliper Guide Pin Bolt (1) » Install and tighten [2x] — Fastener Specifications

10. Electrical Connector (1) @ Rear Parking Brake Actuator » Connect

11. Rear Disc Brake Pad Wear Sensor (2) » Install

12. Connect the electrical connector. (3)

13. Rear Brake Bleeder Valve Cap (1) » Install

14. Install the tire and wheel assembly. Tire and Wheel Removal and Installation

15. Remove the support and lower the vehicle.

16. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

17. Calibrate the park brake. Park Brake Calibration
