Sunroof Air Deflector Replacement

Removal Procedure

1. Open the sunroof window.

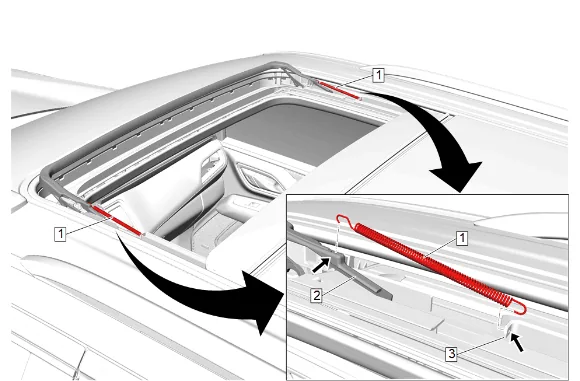

Sunroof Air Deflector Replacement — figure 1

2. Using a suitable tool, remove the sunroof air deflector springs (1) from the sunroof air deflector (2) and the sunroof channel side guides (3).

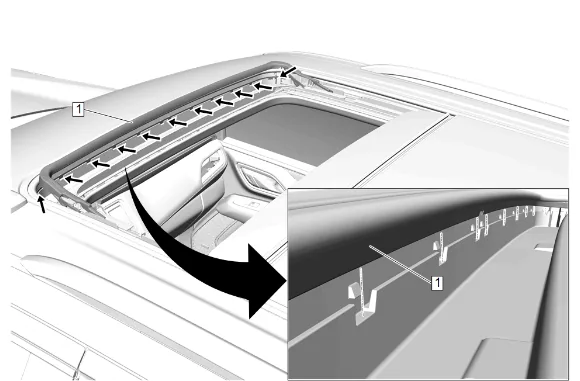

Sunroof Air Deflector Replacement — figure 2

Note

Observe the seat of the sunroof air deflector fabric stiffener in the locking guide.

3. Release the retainers at the sunroof air deflector (1).

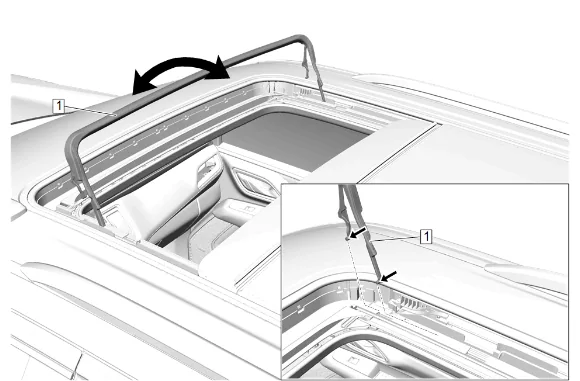

Sunroof Air Deflector Replacement — figure 3

4. Pivot the sunroof air deflector (1) toward the rear end of the vehicle.

Note

Observe the mounting and location of the sunroof air deflector in the sunroof channel side guides.

5. Sunroof Air Deflector (1) » Remove Installation Procedure

6. Sunroof Air Deflector (1) » Install

7. Pivot the sunroof air deflector (1) toward the front end of the vehicle and hold in place.

8. Secure the retainers at the sunroof air deflector (1).

Note

It will be necessary to hold the sunroof air deflector in place due to spring tension.

4. Install the sunroof air deflector springs (1) to the sunroof channel side guides (3) and the sunroof air deflector (2).
5. Close the sunroof window.
