Front Seat Back Lumbar Replacement

Removal Procedure

Front Seat Back Lumbar Replacement — figure 1

1. Front Seat Back Cover and Pad (1) » Remove — Front Seat Back Cover and Pad Removal and Installation

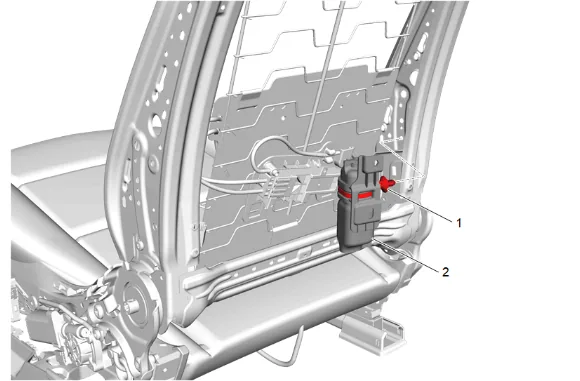

Front Seat Back Lumbar Replacement — figure 2

2. Disconnect the electrical connector.
3. Release the front seat back lumbar pump retainer (1).
4. Front Seat Back Lumbar Pump (2) » Reposition

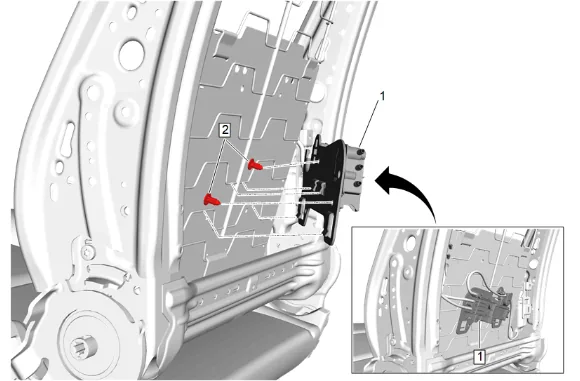

Front Seat Back Lumbar Replacement — figure 3

Note

It is not necessary to disconnect or remove the front seat back lumbar hoses during removal.

5. Disconnect the electrical connector and release the wiring harness retainers as necessary.
6. Release the front seat bladder control module (1) from the front seat lumbar control module retainers (2) and front seat lumbar support.
7. Front Seat Bladder Control Module (1) » Reposition

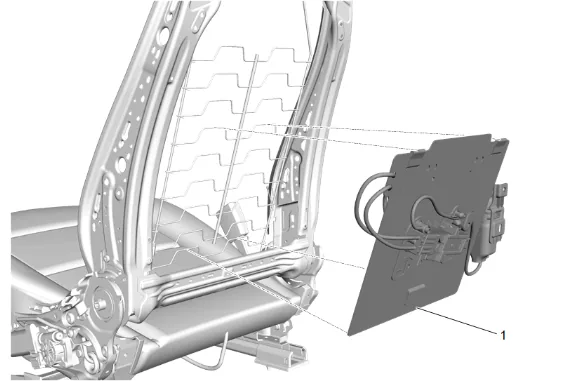

Front Seat Back Lumbar Replacement — figure 4

8. Release the front seat back lumbar retaining features from the front seat lumbar support.

9. Front Seat Back Lumbar (1) » Remove Installation Procedure

10. Front Seat Back Lumbar (1) » Install

11. Front Seat Bladder Control Module (1) » Install

12. Connect the electrical connector and install the wiring harness retainers.

13. Front Seat Back Lumbar Pump (2) » Install

14. Connect the electrical connector.

15. Front Seat Back Cover and Pad (1) » Install — Front Seat Back Cover and Pad Removal and Installation
