Front Floor Console Removal and Installation (DCK, D07)

Removal Procedure

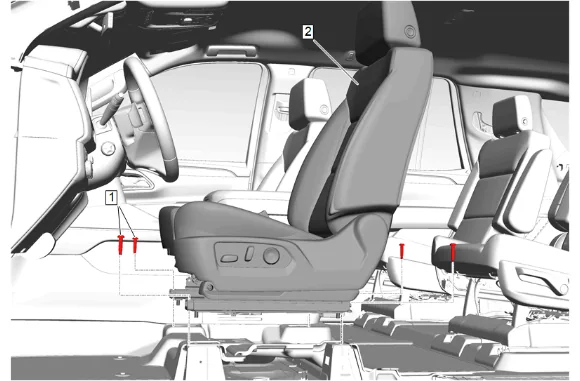

Front Floor Console Removal and Installation (DCK, D07) — figure 1

1. Front Seat (2) » Reposition [2x] — Front Seat Removal and Installation

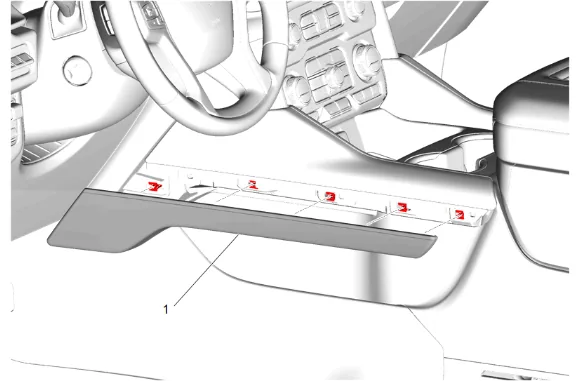

Front Floor Console Removal and Installation (DCK, D07) — figure 2

2. Using a flat-bladed plastic trim tool, release the retaining clips.
3. Front Floor Console Lower Applique (1) » Remove

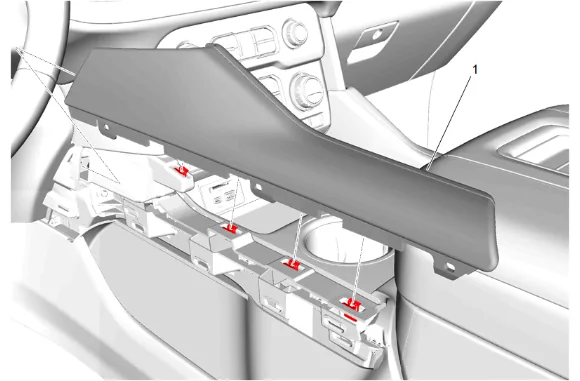

Front Floor Console Removal and Installation (DCK, D07) — figure 3

4. Using a flat-bladed plastic trim tool, release the retaining clips.
5. Front Floor Console Applique (1) » Remove

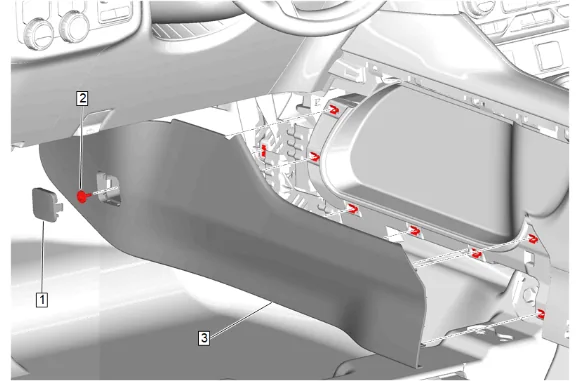

Front Floor Console Removal and Installation (DCK, D07) — figure 4

Note

Use a flat bladed plastic trim tool.

6. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Remove
7. Front Floor Console Extension Bolt (2) » Remove
8. Front Floor Console Extension Panel (3) » Remove

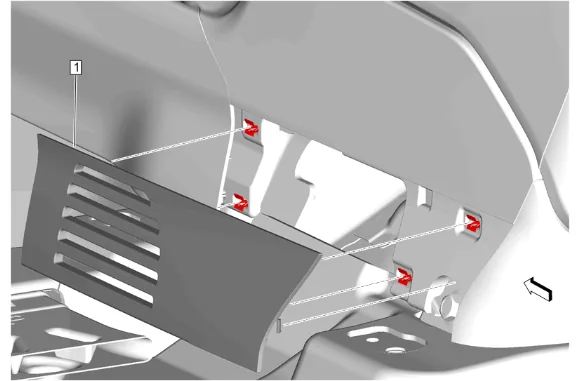

Front Floor Console Removal and Installation (DCK, D07) — figure 5

9. Using a flat-bladed plastic trim tool, release the retaining clips.
10. Front Floor Console Bolt Access Hole Cover (1) » Remove

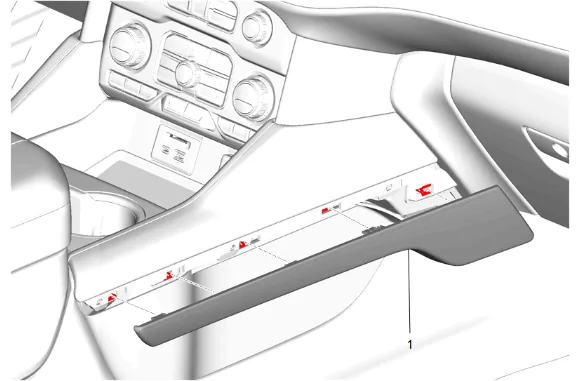

Front Floor Console Removal and Installation (DCK, D07) — figure 6

11. Using a flat-bladed plastic trim tool, release the retaining clips.
12. Front Floor Console Lower Applique (1) » Remove

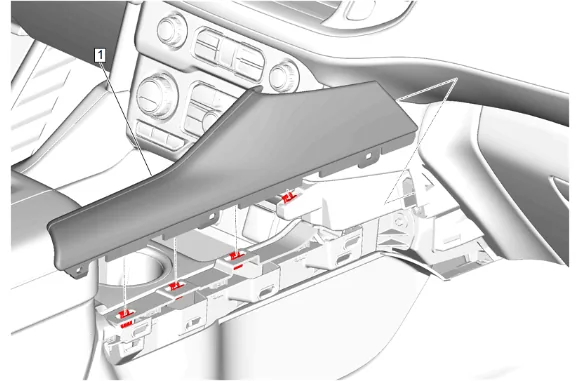

Front Floor Console Removal and Installation (DCK, D07) — figure 7

13. Using a flat-bladed plastic trim tool, release the retaining clips.
14. Front Floor Console Applique (1) » Remove

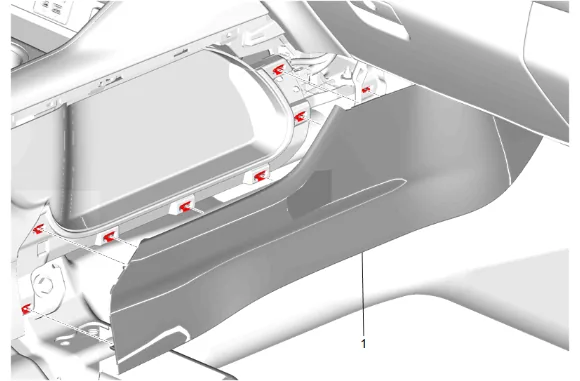

Front Floor Console Removal and Installation (DCK, D07) — figure 8

Note

Use a flat bladed plastic trim tool.

15. Front Floor Console Extension Panel (1) » Remove

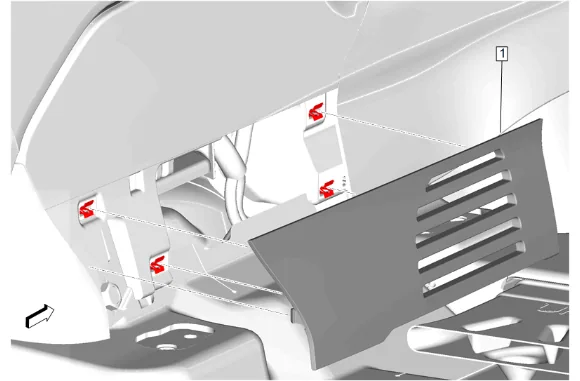

Front Floor Console Removal and Installation (DCK, D07) — figure 9

16. Using a flat-bladed plastic trim tool, release the retaining clips.
17. Front Floor Console Bolt Access Hole Cover (1) » Remove

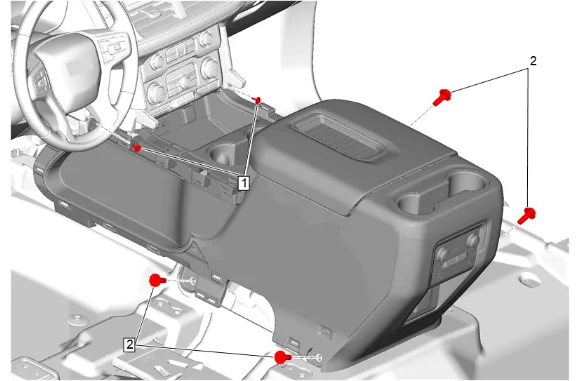

Front Floor Console Removal and Installation (DCK, D07) — figure 10

18. Front Floor Console Retainer Bolt (1) » Remove [2x]
19. Front Floor Console Bolt (2) » Remove [4x]
20. Disconnect and reposition harness as necessary.

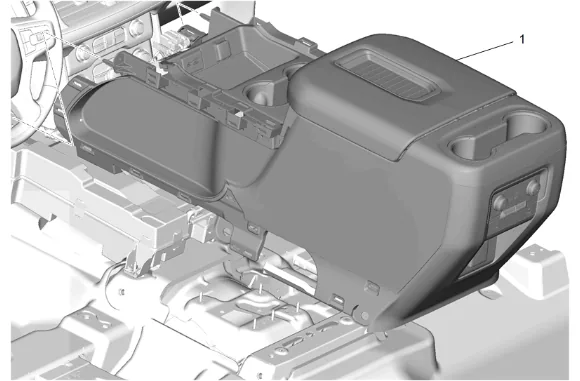

Front Floor Console Removal and Installation (DCK, D07) — figure 11

21. With the aid of an assistant, remove the console from the vehicle. (1) Installation Procedure

22. With the aid of an assistant, install the console to the vehicle. (1)

23. Connect and position the wiring harness.

24. Front Floor Console (1) » Install

Caution

Refer to Fastener Caution.

4. Front Floor Console Retainer Bolt (1) » Install and tighten [2x] — Fastener Specifications

5. Front Floor Console Bolt (2) » Install and tighten [4x] — Fastener Specifications

6. Front Floor Console Bolt Access Hole Cover (1) » Install

7. Front Floor Console Extension Panel (1) » Install

8. Front Floor Console Applique (1) » Install

9. Front Floor Console Lower Applique (1) » Install

10. Front Floor Console Bolt Access Hole Cover (1) » Install

11. Front Floor Console Extension Panel (3) » Install

12. Front Floor Console Extension Bolt (2) » Install and tighten — Fastener Specifications

13. Front Floor Console Extension Panel Bolt Access Hole Cover (1) » Install

14. Front Floor Console Applique (1) » Install

15. Front Floor Console Lower Applique (1) » Install

16. Front Seat (2) » Install [2x] — Front Seat Removal and Installation
