Fuel Tank Heat Shield Replacement (Long Wheelbase) (1)

Fuel Tank Heat Shield Replacement (Long Wheelbase) Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

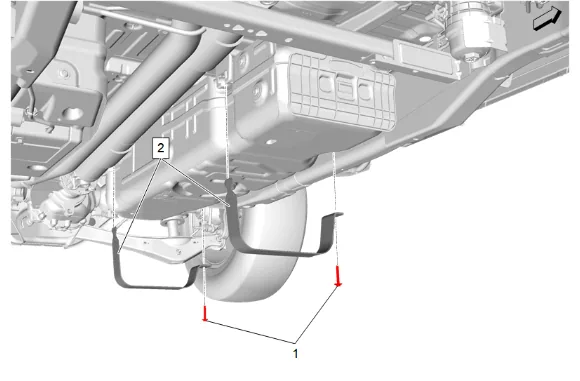

Fuel Tank Heat Shield Replacement (Long Wheelbase) (1) — figure 1
Fuel Tank Heat Shield Replacement (Long Wheelbase) (1) — figure 1
  1. Place a suitable adjustable jack under the fuel tank.
  2. Fuel Tank Strap Bolt (1) » Remove [2x]
  3. Fuel Tank Strap (2) » Remove [2x]

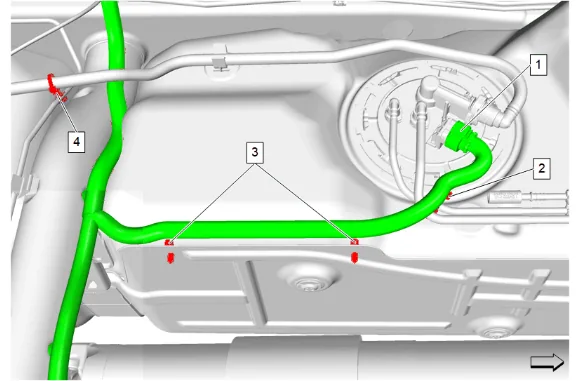

Fuel Tank Heat Shield Replacement (Long Wheelbase) (1) — figure 2
Fuel Tank Heat Shield Replacement (Long Wheelbase) (1) — figure 2
  1. Wiring Harness Retainer (3) » Disengage [2x]

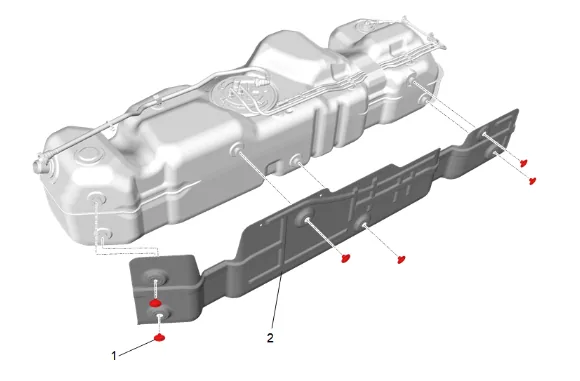

Fuel Tank Heat Shield Replacement (Long Wheelbase) (1) — figure 3
Fuel Tank Heat Shield Replacement (Long Wheelbase) (1) — figure 3

  1. Fuel Tank Shield Retainer (1) » Remove [6x]

  2. Fuel Tank Heat Shield (2) » Remove Installation Procedure

  3. Fuel Tank Heat Shield (2) » Install

  4. Fuel Tank Shield Retainer (1) » Install [6x]

  5. Wiring Harness Retainer (3) » Engage [2x]

  6. Fuel Tank Strap (2) » Install [2x]

  1. Fuel Tank Strap Bolt (1) » Install and tighten [2x] — Fastener Specifications
  2. Remove the jack.
  3. Lower the vehicle.
