Positive Crankcase Ventilation Foul Air Tube Replacement (L84)

Positive Crankcase Ventilation Foul Air Tube Replacement (L84) Removal Procedure

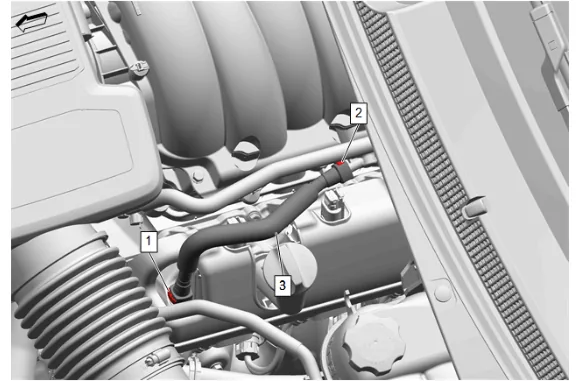

Positive Crankcase Ventilation Foul Air Tube Replacement (L84) — figure 1
Positive Crankcase Ventilation Foul Air Tube Replacement (L84) — figure 1

  1. Positive Crankcase Ventilation Tube Connector (1) @ Positive Crankcase Ventilation Fitting » Disconnect — Plastic Collar Quick Connect Fitting Service

  2. Positive Crankcase Ventilation Tube Connector (2) @ Intake Manifold » Disconnect — Plastic Collar Quick Connect Fitting Service

  3. Positive Crankcase Ventilation Foul Air Tube (3) » Remove Installation Procedure

  4. Positive Crankcase Ventilation Foul Air Tube (3) » Install

  5. Positive Crankcase Ventilation Tube Connector (2) @ Intake Manifold » Connect — Plastic Collar Quick Connect Fitting Service

  6. Positive Crankcase Ventilation Tube Connector (1) @ Positive Crankcase Ventilation Fitting » Connect — Plastic Collar Quick Connect Fitting Service
